Raccord instantané série KQ2 Fournisseurs

Accueil / Produits / Accessoire pneumatique / Ajustement à une touche / Raccord instantané série KQ2

Raccord instantané série KQ2 Raccord instantané série KQ2
  • Raccord instantané série KQ2
  • Raccord instantané série KQ2
Ajustement à une touche

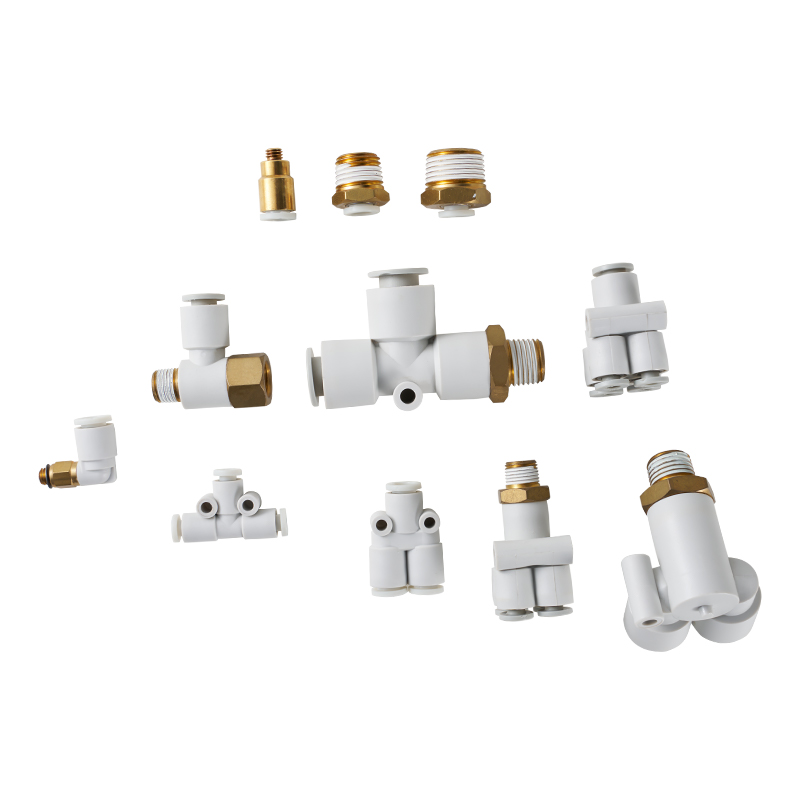

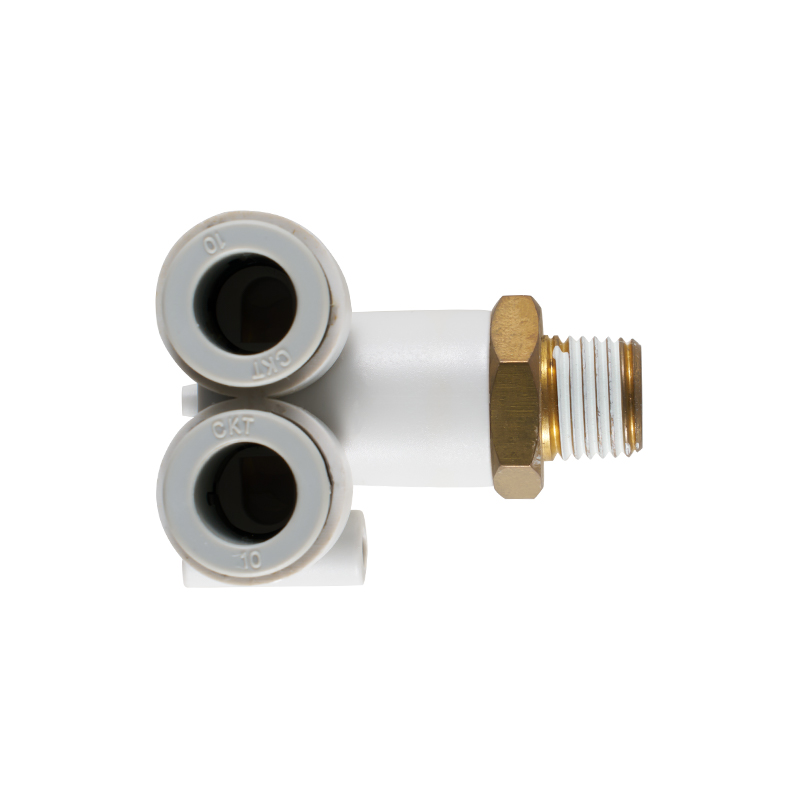

Raccord instantané série KQ2

Le raccord instantané de la série KQ2 est un composant essentiel conçu pour simplifier les opérations de connexion de canalisations de fluides. Son concept de conception de base se concentre sur la réalisation de processus d'installation et de retrait rapides et faciles tout en garantissant la stabilité et l'intégrité de l'étanchéité de la connexion, et convient à une variété de scénarios de transmission de fluides.

Confort de base : La caractéristique notable de cette série est son mécanisme de fonctionnement en une seule étape, qui ne nécessite généralement qu'une seule presse pour terminer l'insertion fiable du raccord de tuyauterie et former un joint efficace, simplifiant considérablement le processus d'installation.

Fiabilité de la connexion : La conception dispose d'une structure de verrouillage précise intégrée, qui se verrouille automatiquement une fois le raccord de tuyau correctement inséré, empêchant efficacement tout détachement accidentel en cas de vibration, de fluctuations de pression ou de traction accidentelle, et assurant la stabilité à long terme du point de connexion.

Garantie d'étanchéité : Les composants d'étanchéité intégrés et optimisés peuvent fournir des performances d'étanchéité continues et efficaces dans les conditions d'application et la plage de compatibilité des fluides spécifiées, réduisant ainsi le risque de fuite.

Grande adaptabilité : La compatibilité est prise en compte dans la conception et la sélection des matériaux, et elle peut s'adapter à une variété de spécifications et de types de tuyaux courants pour répondre aux besoins de base des différentes constructions de systèmes fluidiques.

Commodité d'entretien : Un mécanisme de dégagement pratique est conçu pour permettre le retrait rapide et non destructif des tuyaux lorsque cela est nécessaire, facilitant ainsi l'inspection, la maintenance ou la réorganisation du système et améliorant l'efficacité de la maintenance ultérieure.

E-mail : manager@cktworld.com
Télécharger
PRÉCÉDENT :Raccord instantané auto-obturant série KC
SUIVANT :Pas d'article suivant

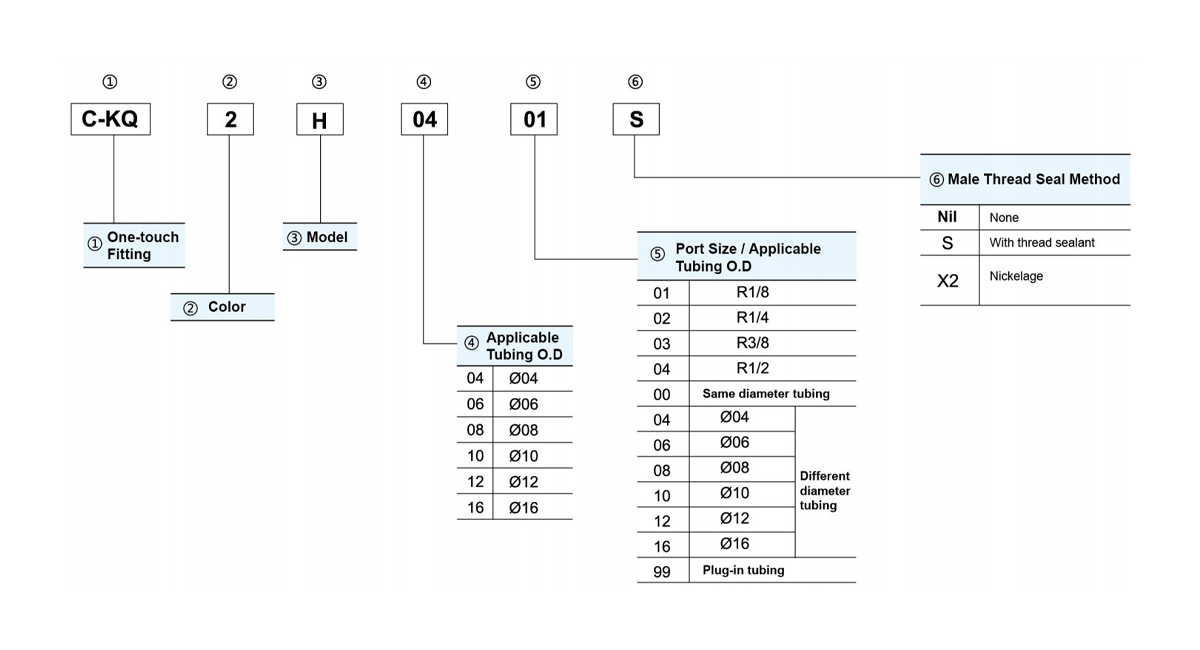

  • Fluide Aérien /Eau
    Matériel Laiton
    Max. Fonctionnement Pression 1,0MPa
    Vide Pression -100kPa
    Preuve Pression 3,0MPa
    Fonctionnement Température Gamme Aérien:-5~60℃,Water:0~40℃
    En vigueur Tubes Matériel Nylon, uréthane
    En vigueur Montage Taille Ø4,Ø6,Ø8,Ø10,Ø12,Ø16

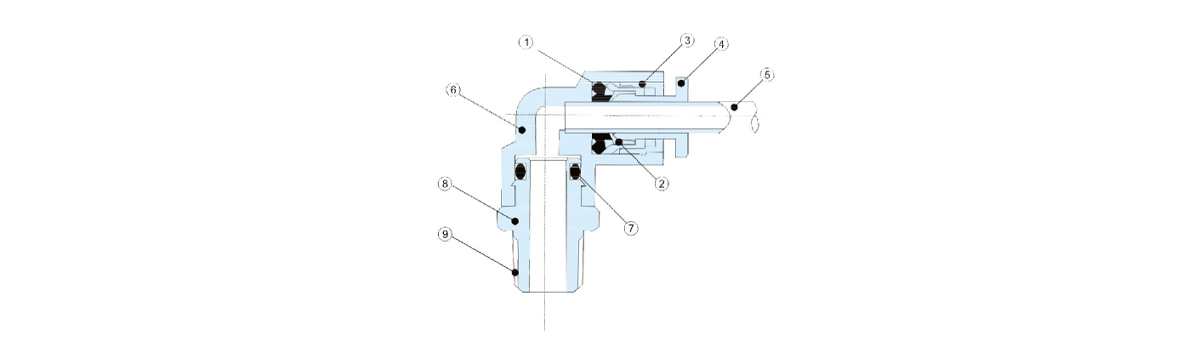

  • ① Seal NBR
    ② Chuck Stainless Steel
    ③ Guide Stainless Steel Or Brass
    ④ Release Button POM
    ⑤ Tubing Nylon Or Urethane
    ⑥ Body PBT
    ⑦ O ring NBR
    ⑧ Material Body Brass
    ⑨ Thread M/R/Rc

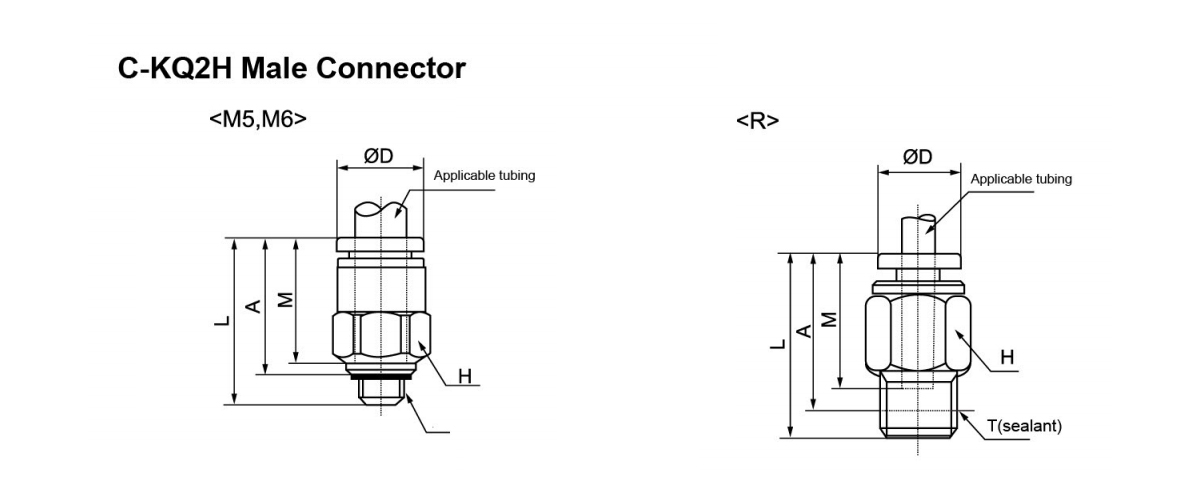

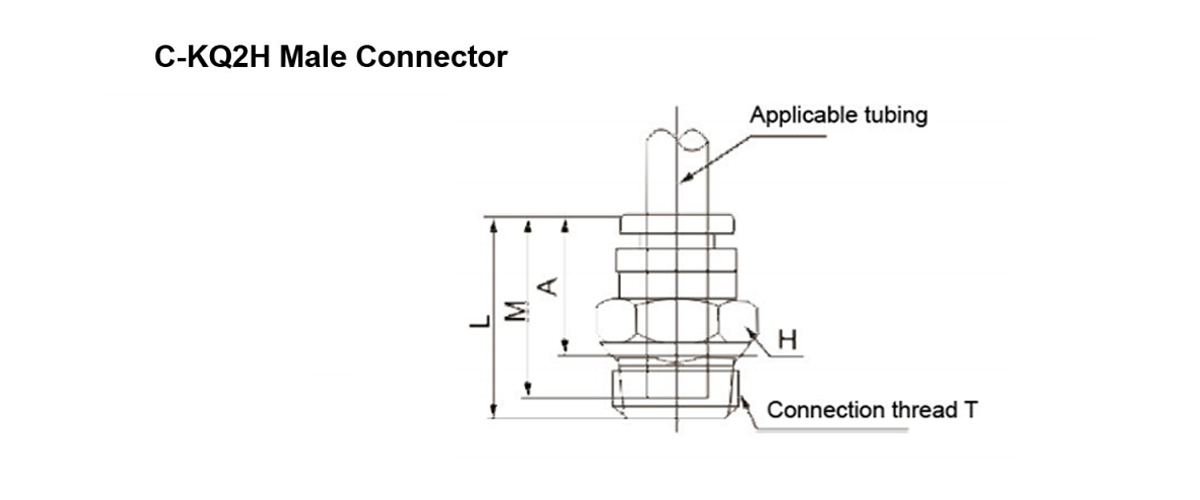

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L A M
    Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2H04-01S 1/8 10 - 22 18 16 5.6 4 9
    C-KQ2H04-02S 1/4 14 - 19.5 13.5 16
    Ø6 C-KQ2H06-01S 1/8 12 - 22.5 18.5 17 13.1 10.4 16
    C-KQ2H06-02S 1/4 14 - 23 17 14
    C-KQ2H06-03S 3/8 17 - 22 15.5 27
    Ø8 C-KQ2H08-01S 1/8 14 - 28 24 18.5 26.1 18.0 21
    C-KQ2H08-02S 1/4 26.5 20.5 19
    C-KQ2H08-03S 3/8 17 - 22 15.5 26
    Ø10 C-KQ2H10-01S 1/8 17 - 30 26 21 26.1 26.1 19
    C-KQ2H10-02S 1/4 33.5 27.5 41.5 29.5 30
    C-KQ2H10-03S 3/8 29 22.5 30
    C-KQ2H10-04S 1/2 22 - 27 19 53
    Ø12 C-KQ2H12-02S 1/4 19 - 34.5 28.5 22 58.3 46.1 42
    C-KQ2H12-03S 3/8 30 23.5 34
    C-KQ2H12-04S 1/2 22 - 22 51
    Ø16 C-KQ2H16-03S 3/8 24 25.7 39.5 33 25 81 (81) 61
    C-KQ2H16-04S 1/2 35.5 27.5 113 (96) 47

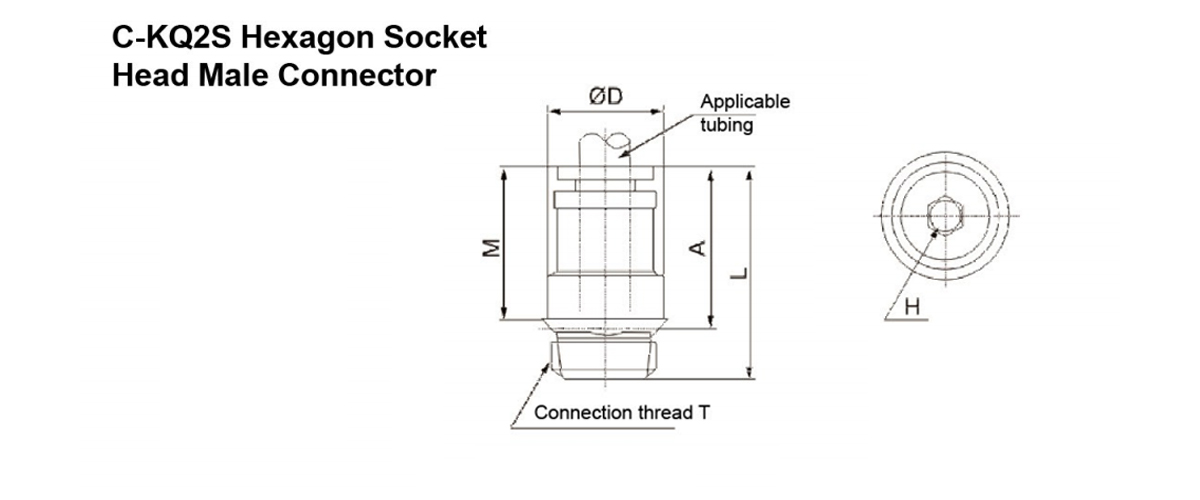

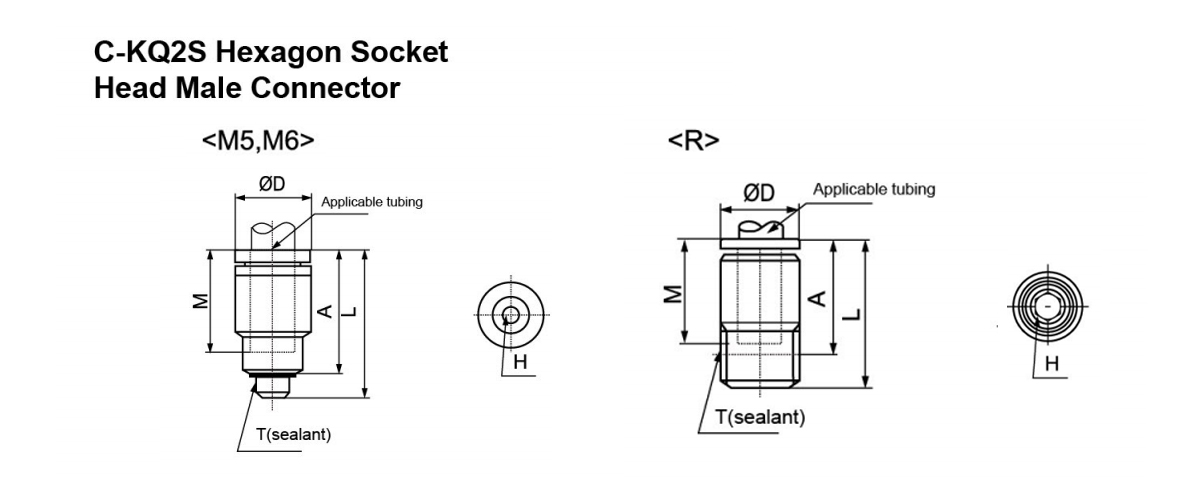

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L A M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2S04-01S 1/8 3 9.8 23 19 16 4.1 3.6 8
    Ø6 C-KQ2S06-01S 1/8 4 11.8 24 20 17 10.0 9.9 9
    C-KQ2S06-02S 1/4 13.8 24 18 10.7 10.0 15
    Ø8 C-KQ2S08-01S 1/8 5 14 28 24 18.5 17.2 16.2 12
    C-KQ2S08-02S 1/4 6 25.5 19.5 23.3 11
    C-KQ2S08-03S 3/8 17 27.5 21 24
    Ø10 C-KQ2S10-01S 1/8 5 17 30 26 21 17.2 16.2 18
    C-KQ2S10-02S 1/4 8 27.5 21.5 39.0 26.6 12
    C-KQ2S10-03S 3/8 21 19
    C-KQ2S10-04S 1/2 22 28 20 35
    Ø12 C-KQ2S12-02S 1/4 8 19 33.5 27.5 22 46.0 44.5 23
    C-KQ2S13-03S 3/8 10 29 22.5 60.0 18
    C-KQ2S12-04S 1/2 22 28 20 30
    Ø16 C-KQ2S16-03S 3/8 10 25.7 39 32.5 25 81 (81) 42
    C-KQ2S16-04S 1/2 12 35 27 113 (96) 34

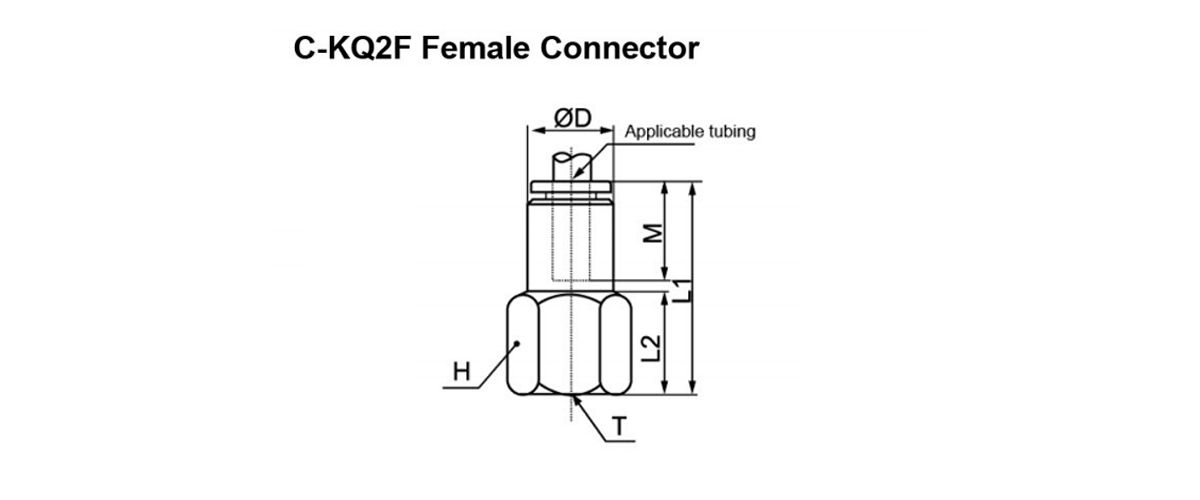

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L1 L2 M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2F04-01 1/8 14 10 27 11 16 5.6 4 15
    C-KQ2F04-02 1/4 17 31 14 23
    Ø6 C-KQ2F06-01 1/8 14 12 27.5 11 17 13.1 10.4 15
    C-KQ2F06-02 1/4 17 31 13 22
    C-KQ2F06-03 3/8 19 33.5 15 25
    Ø8 C-KQ2F08-01 1/8 14 14 29 11 18.5 26.1 18.0 17
    C-KQ2F08-02 1/4 17 32.5 13 24
    C-KQ2F08-03 3/8 19 33.5 14 24
    Ø10 C-KQ2F10-02 1/4 17 17 34.5 14 21 41.5 29.5 27
    C-KQ2F10-03 3/8 19 36.5 15 30
    Ø12 C-KQ2F12-02 1/4 19 19 35 14 22 58.3 46.1 36
    C-KQ2F12-03 3/8 37 31
    C-KQ2F12-04 1/2 24 41 18 52
    Ø16 C-KQ2F16-03 3/8 24 25.7 38 15 25 81 (81) 59
    C-KQ2F16-04 1/2 43 19 113 (96) 58

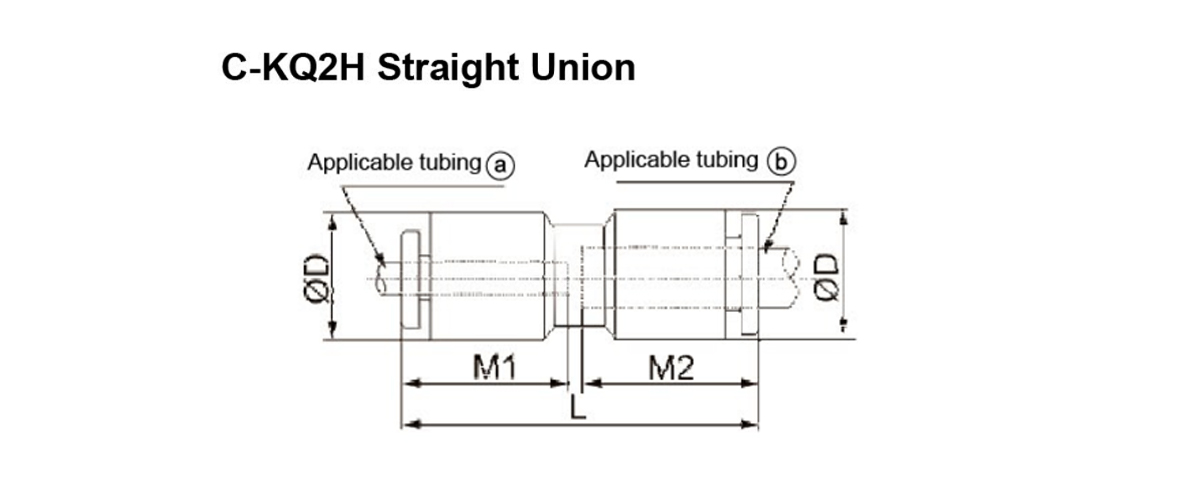

    Applicable Tubing O.D
    (mm)     		Model ØD L M Effective Area
    (mm²)
    Weight
    (g )
    ⓐ ⓑ 1 2 Nylon Urethane
    Ø4 C-KQ2H04-00 10.4 32.5 16 5.6 4 3
    Ø6 C-KQ2H06-00 12.8 34.5 17 13.1 10.4 4
    Ø8 C-KQ2H08-00 15.2 38.5 18.5 26.1 18.0 6
    Ø10 C-KQ2H10-00 18.5 42.5 21 41.5 29.5 11
    Ø12 C-KQ2H12-00 20.9 44.5 22 58.3 46.1 14
    Ø16 C-KQ2H16-00 26.5 51 25 113 (96) 24
    Ø4 Ø6 C-KQ2H04-06 12.8 34.5 16 17 5.6 5.6 5
    Ø6 Ø8 C-KQ2H06-08 15.2 38.5 17 18.5 13.1 10.4 6
    Ø8 Ø10 C-KQ2H08-10 18.5 42 18.5 21 26.1 18.0 11
    Ø10 Ø12 C-KQ2H10-12 20.9 44.5 21 22 41.5 29.5 14
    Ø12 Ø16 C-KQ2H12-16 26.5 56.5 22 25 58.3 46.1 47

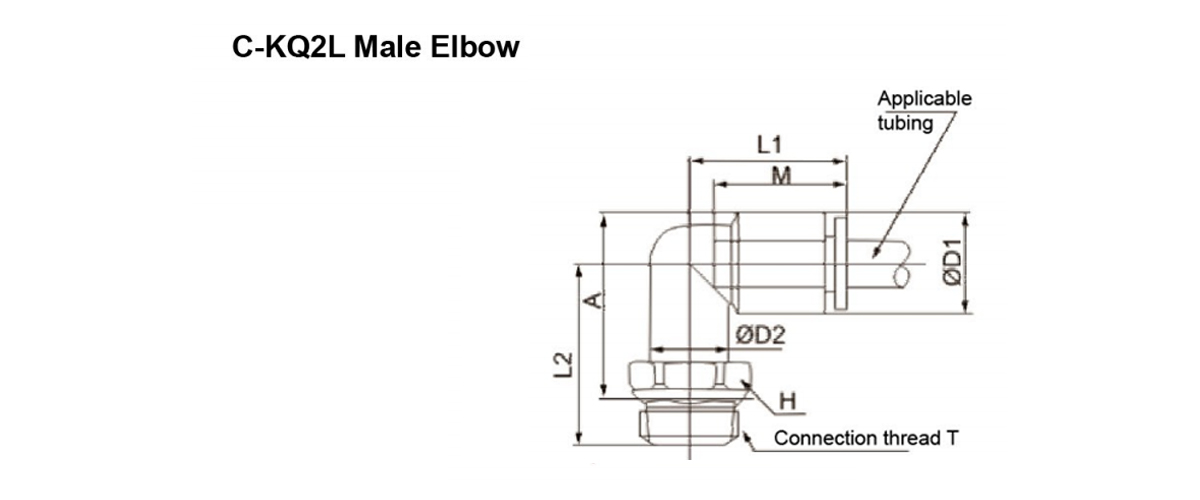

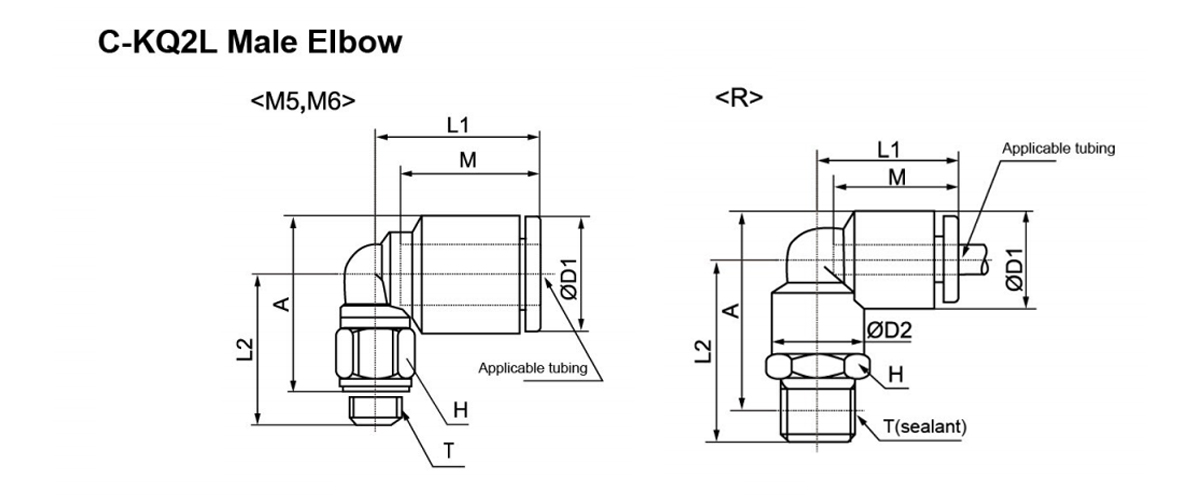

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M
    Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2L04-01S 1/8 10 10.4 10 18 22 23 16 4.2 4.2 10
    C-KQ2L04-02S 1/4 14 26 25 19
    Ø6 C-KQ2L06-01S 1/8 10 12.8 10 20 23 25.5 17 11.4 9.0 12
    C-KQ2L06-02S 1/4 14 27 27.5 22
    C-KQ2L06-03S 3/8 17 29 29 33
    Ø8 C-KQ2L08-01S 1/8 12 15.2 12 23 24.5 28 18.5 21.6 14.9 13
    C-KQ2L08-02S 1/4 14 28.5 30 21
    C-KQ2L08-03S 3/8 17 30.5 31.5 35
    Ø10 C-KQ2L10-01S 1/8 17 18.5 17 26.5 27 32 21 21.6 14.9 25
    C-KQ2L10-02S 1/4 30 33 35.2 25.0 26
    C-KQ2L10-03S 3/8 32 34.5 36
    C-KQ2L10-04S 1/2 22 36 37 63
    Ø12 C-KQ2L12-02S 1/4 17 20.9 17 28.5 31 35.5 22 50.2 39.7 28
    C-KQ2L12-03S 3/8 33 37 38
    C-KQ2L12-04S 1/2 22 37 39.5 65
    Ø16 C-KQ2L16-03S 3/8 22 26.5 20.9 34 38 44.5 25 71 (71) 101
    C-KQ2L16-04S 1/2 41 46 100 (84) 105

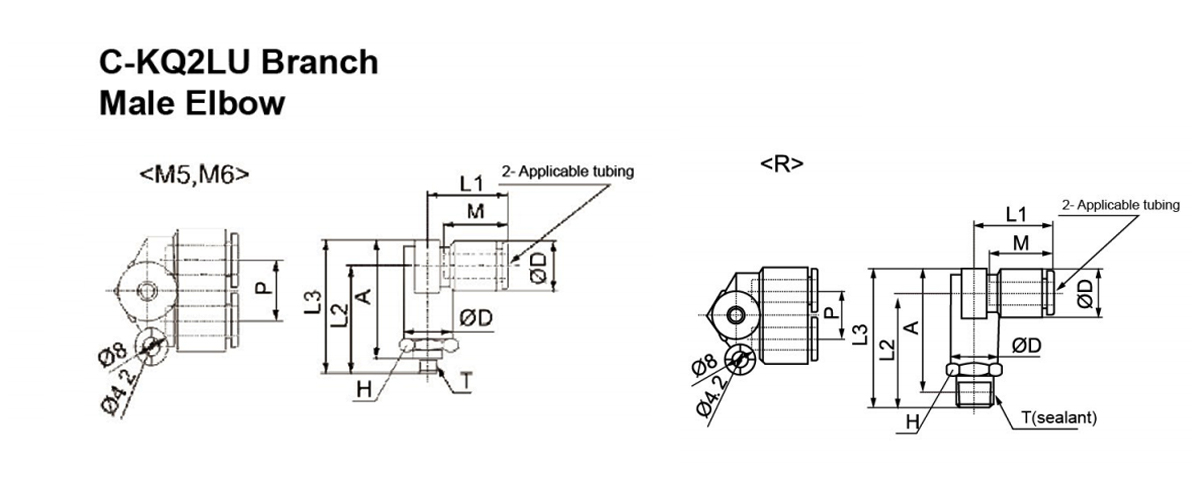

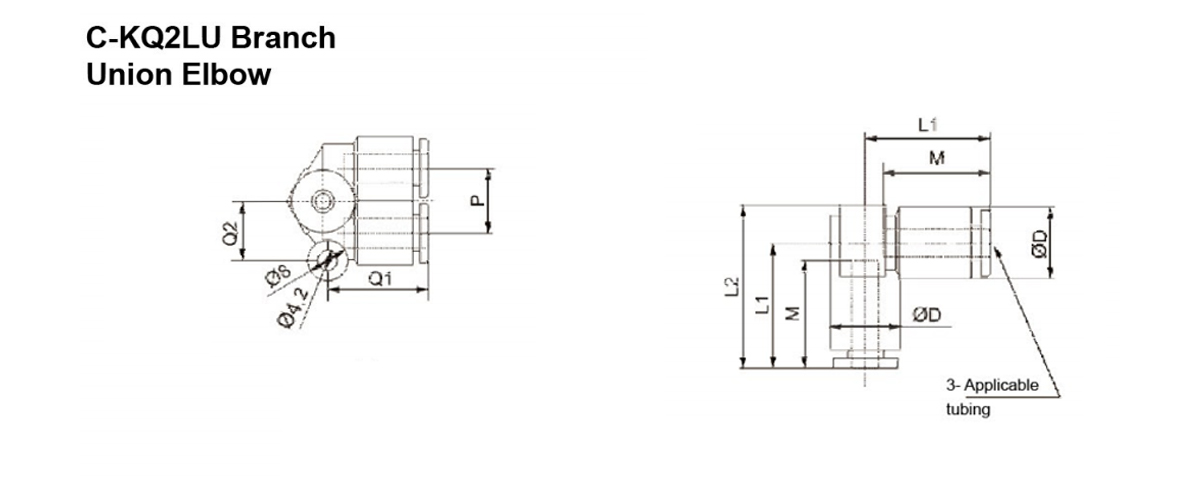

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L1 L2 L3 A M P Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2LU04-M5 M5×0.8 11 10.4 18.5 24 29.5 25.5 16 10.4 4.3 4.1 10
    C-KQ2LU04-M6 M6×1.0 24.5 30
    C-KQ2LU04-01S 1/8 26.5 32 27.5 6.0 4.1 12
    C-KQ2LU04-02S 1/4 14 30.5 36 30 21
    Ø6 C-KQ2LU06-M5 M5×0.8 13 12.8 21 26.5 33 29.5 17 12.8 4.3 4.3 13
    C-KQ2LU06-M6 M6×1.0 27 33.5
    C-KQ2LU06-01S 1/8 29.5 36 32 13.9 11.0 15
    C-KQ2LU06-02S 1/4 14 33 39.5 33.5 22
    C-KQ2LU06-03S 3/8 17 35 41.5 35 35
    Ø8 C-KQ2LU08-01S 1/8 17 15.2 24 34 41.5 38 18.5 15.2 26.3 18.2 27
    C-KQ2LU08-02S 1/4 37 44.5 38.5
    C-KQ2LU08-03S 3/8 38 45.5 39 35
    Ø10 C-KQ2LU10-02S 1/4 19 18.5 27 40 49.5 43.5 21 18.5 40.8 29.0 41
    C-KQ2LU10-03S 3/8 41 50.5 44 42
    C-KQ2LU10-04S 1/2 22 44.5 54 45.5 64
    Ø12 C-KQ2LU12-02S 1/4 22 20.9 29 42.5 53 47 22 20.9 57.2 45.2 57
    C-KQ2LU12-03S 3/8 43.5 54 47.5 58
    C-KQ2LU12-04S 1/2 46.5 57 49 65

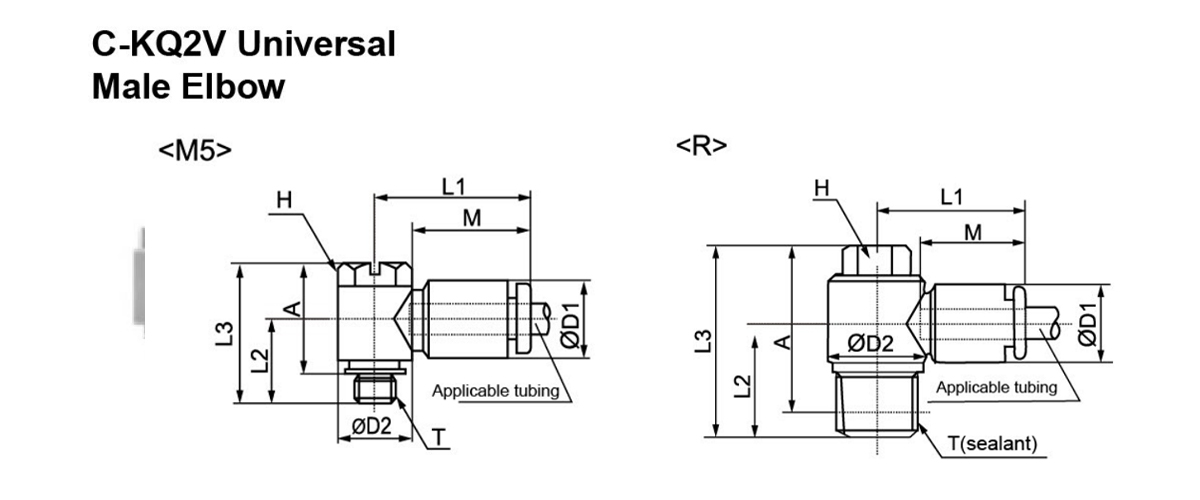

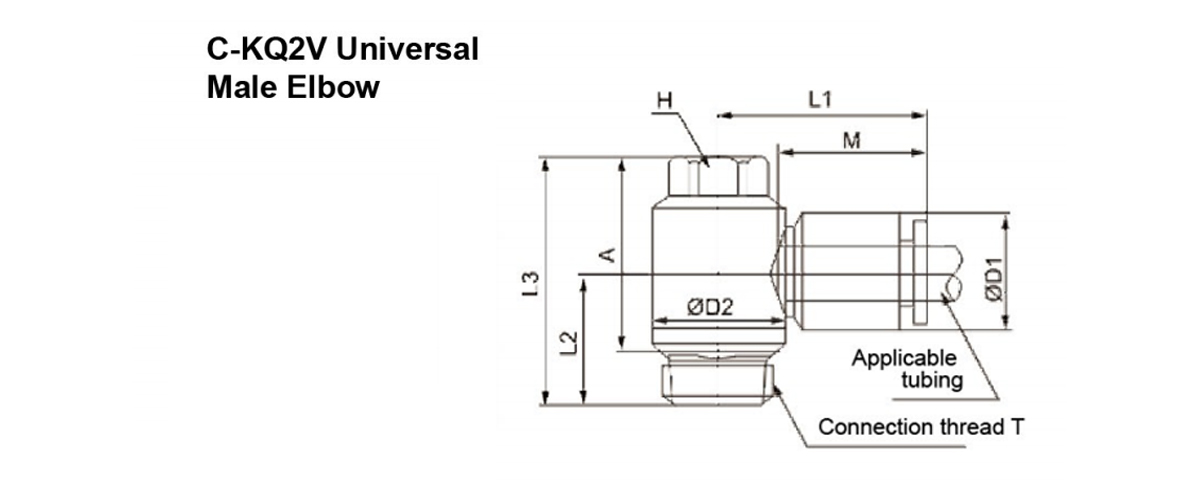

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M Effective Area
    (mm²)
    Weight
    ( g)
    Nylon Urethane
    Ø4 C-KQ2V04-M5 M5×0.8 8 10.4 9.8 20.5 11 18.5 15 16 2.9 2.9 6
    C-KQ2V04-01S 1/8 13.4 22 14.5 26.5 22.5 14
    Ø6 C-LQ2V06-M5 M5×0.8 8 12.8 9.8 23.5 12 18.5 15 17 3.8 3.8 7
    C-KQ2V06-01S 1/8 13.4 24 14.5 26.5 22.5 7.5 5.9 15
    C-KQ2V06-02S 1/4 10 15.4 23.5 18.5 31 25 26
    Ø8 C-KQ2V08-01S 1/8 12 15.2 17.6 28.5 15.5 28.5 24.5 18.5 16 11.2 24
    C-KQ2V08-02S 1/4 18.5 31.5 25.5 30
    C-KQ2V08-03S 3/8 14 20.6 27.5 20.5 36.5 30 20.5 14.3 47
    Ø10 C-KQ2V10-02S 1/4 14 18.5 20.6 31 195 35.5 29.5 21 27 20.3 40
    C-KQ2V10-03S 3/8 20.5 36.5 30 49
    Ø12 C-KQ2V12-03S 3/8 17 20.9 25.2 34 22 38.5 32 22 39 30.8 63
    C-KQ2V12-04S 1/2 25 41.5 33.5 80

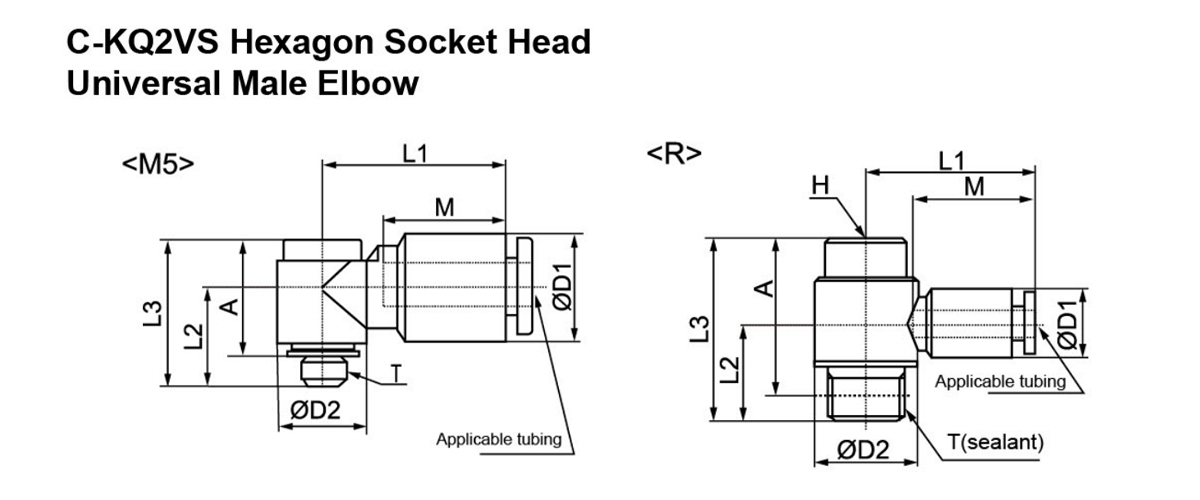

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T
    H
    Width
    across
    flats     		ØD1 ØD2 L1 L2 L3 A M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2VS04-M5 M5 4 10.4 9.8 20.5 10.5 18 15 16 2.9 2.9 6
    C-KQ2VS04-01S 1/8 6 13.4 22 14.5 26.5 22.5 14
    Ø6 C-KQ2VS06-M5 M5 4 12.8 9.8 23.5 12 18 15 17 3.8 3.8 7
    C-KQ2VS06-01S 1/8 6 13.4 24 14.5 26.5 22.5 7.5 5.9 15
    C-KQ2VS06-02S 1/4 15.3 23.5 18.5 27 21 22
    Ø8 C-KQ2VS08-01S 1/8 8 15.2 17.6 28.5 15.5 27 23 18.5 16 11.2 24
    C-KQ2VS08-02S 1/4 18.5 30 24 30
    C-KQ2VS08-03S 3/8 20.6 27.5 20.5 32.5 26 20.5 14.3 47
    Ø10 C-KQ2VS10-02S 1/4 8 18.5 20.6 31 19.5 31.5 25 21 27 20.3 32
    C-KQ2VS10-03S 3/8 20.5 32.5 26 39
    Ø12 C-KQ2VS12-03S 3/8 10 20.9 25.2 34 22 36 30 22 39 30.8 48
    C-KQ2VS12-04S 1/2 25 39 31 67

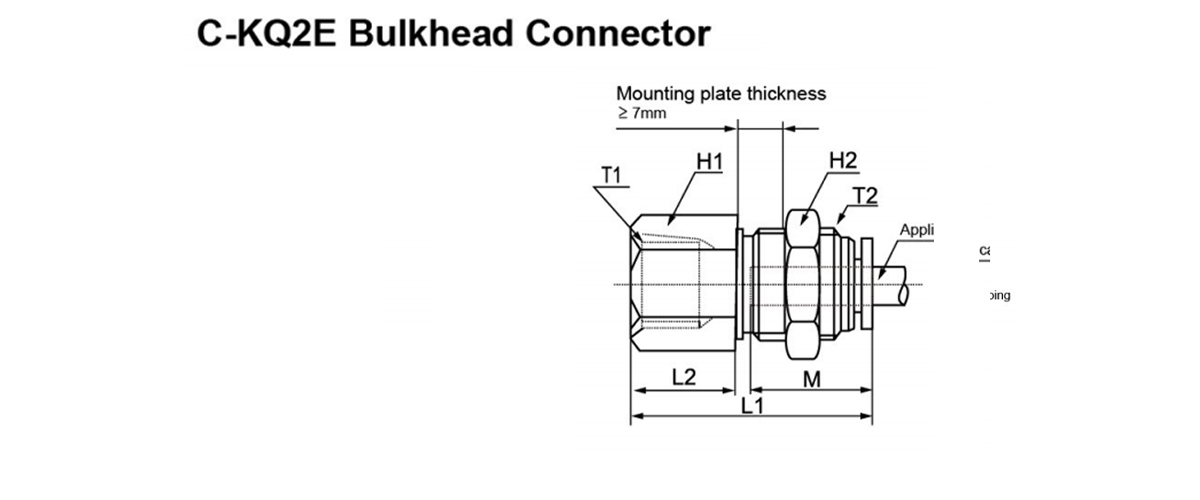

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T1 Mounting
    Thread
    T2     		H1
    Width
    Across
    Flats     		H2
    Width
    Across
    Flats     		L1 L2 Mount-
    ing Hole     		M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2E04-01 1/8 M12×1 14 14 27.5 11 13 16 5.6 4 16
    C-KQ2E04-02 1/4 17 31 15 35
    Ø6 C-KQ2E06-01 1/8 M14×1 17 17 28 11 15 17 13.1 10.4 25
    C-KQ2E06-02 1/4 31.5 15 40
    C-KQ2E06-03 3/8 19 33.5 17 29
    Ø8 C-KQ2E08-01 1/8 M16×1 17 19 27.5 7.5 17 18.5 26.1 18.0 28
    C-KQ2E08-02 1/4 33 13 27
    C-KQ2E10-02 3/8 19 35 15 48
    Ø10 C-KQ2E10-02 1/4 M20×1 22 24 34.5 12.5 21 21 41.5 29.5 53
    C-KQ2E10-03 3/8 22 36.5 15 67
    Ø12 C-KQ2E12-03 3/8 M22×1 24 27 37 14 23 22 58.3 46.1 92
    C-KQ2E12-04 1/2 41 18 59
    Ø16 C-KQ2E16-03 3/8 M28×1.5 30 32 40 14 29 25 96 (96) 127
    C-KQ2E16-04 1/2 44 18 113 132

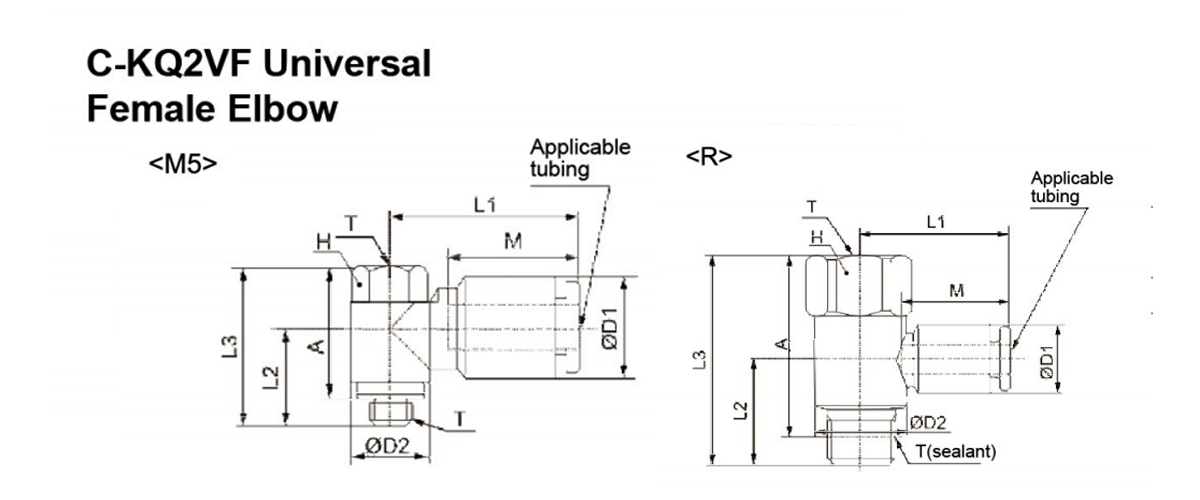

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M Weight
    (g)
    Ø4 C-KQ2VF04-M5 M5×0.8 8 10.4 9.8 20.5 11 20 16 16 6
    C-KQ2VF04-01S 1/8 14 13.4 22 15.5 29.5 25.5 19
    Ø6 C-KQ2VF-06-M5 M5×0.8 8 12.8 9.8 23.5 12.5 20 16 17 7
    C-KQ2VF06-01S 1/8 14 13.4 24.5 15.5 29.5 25.5 19
    C-KQ2VF06-02S 1/4 17 17.6 25 20 38.5 32.5 36
    Ø8 C-KQ2VF08-01S 1/8 17 15.2 17.6 28.5 17 31 27 18.5 29
    C-KQ2VF08-02S 1/4 20 38.5 32.5 37
    C-KQ2VF08-03S 3/8 22 25.2 29.5 25.5 45.5 39 66
    Ø10 C-KQ2VF10-02S 1/4 19 18.5 20.6 31.5 22 41 35 21 48
    C-KQ2VF10-03S 3/8 22 25.2 24.5 45.5 39 68
    Ø12 C-KQ2VF12-03S 3/8 22 20.9 25.2 34 24.5 45.5 39 22 70

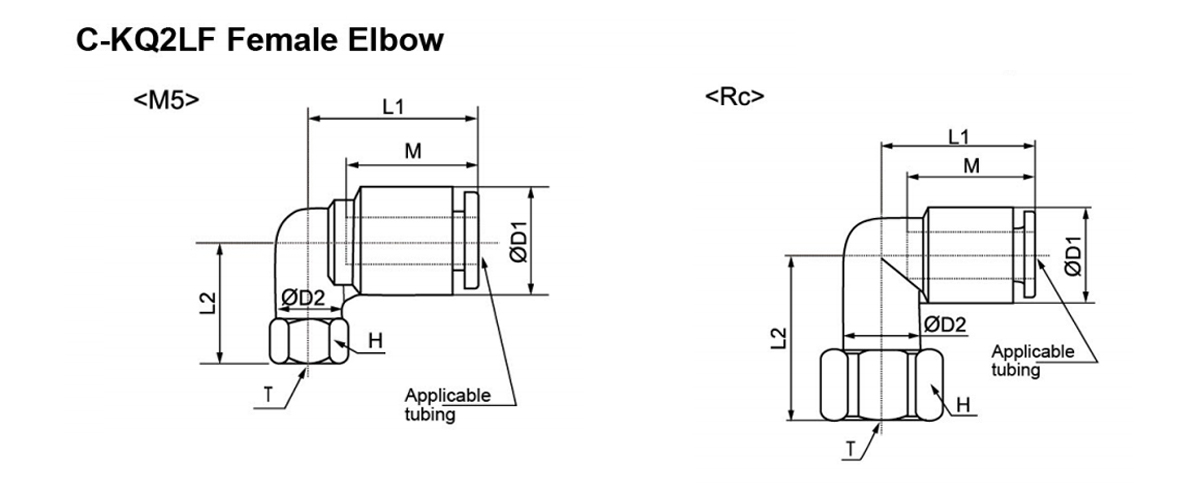

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2LF04-M5 M5×0.8 8 10.4 8 18.5 14.5 16 3.5 3.5 5
    C-KQ2LF04-M6 M6×1.0 15.5
    C-KQ2LF04-01 1/8 14 10 21 4.2 4.2 13
    C-KQ2LF04-02 1/4 17 24.5 20
    Ø6 C-KQ2LF06-M5 M5×0.8 8 12.8 8 20.5 15 17 3.5 3.5 5
    C-KQ2LF06-M6 M6×1.0 16 6
    C-KQ2LF06-01 1/8 14 10 22 11.4 9.0 13
    C-KQ2LF06-02 1/4 17 25.5 20
    C-KQ2LF06-03 3/8 19 26
    Ø8 C-KQ2LF08-01 1/8 14 15.2 12 23.5 23 18.5 21.6 14.9 16
    C-KQ2LF08-02 1/4 17 26.5 22
    C-KQ2LF08-03 3/8 19 27 23
    Ø10 C-KQ2LF10-02 1/4 17 18.5 17 26.5 28 21 21.6 14.9 27
    C-KQ2LF10-03 3/8 19 28.5 35.2 25.0
    C-KQ2LF10-04 1/2 24 32.5 46
    Ø12 C-KQ2LF12-02 1/4 17 20.9 17 28.5 29.5 22 50.2 39.7 29
    C-KQ2LF12-03 3/8 19 30
    C-KQ2LF12-04 1/2 24 34 48

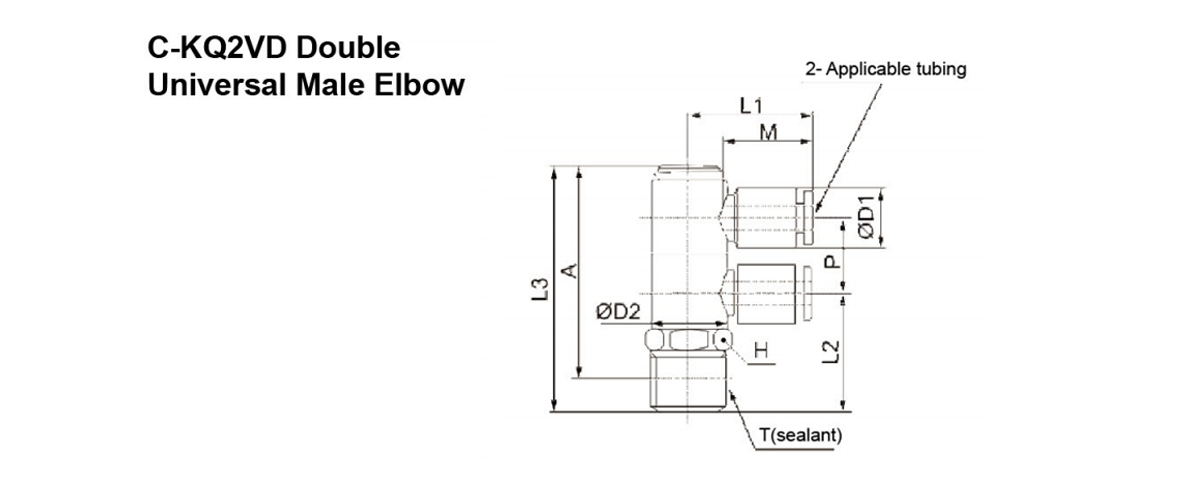

    Applicable Tubing O.D
    (mm)     		Model
    Connection Thread T     		H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P
    Weight
    (g)
    Ø4 C-KQ2VD04-01S 1/8 14 10.4 13.4 22 18.5 41 37 16 13.4 23
    C-KQ2VD04-02S 1/4 21.5 44 38 29
    C-KQ2VD04-03S 3/8 17 23.5 46 40 42
    Ø6 C-KQ2VD06-01S 1/8 14 12.8 13.4 24.5 18.5 41 37 17 13.4 24
    C-KQ2VD06-02S 1/4 21.5 44 38 30
    C-KQ2VD06-03S 3/8 17 23.5 46 40 42
    Ø8 C-KQ2VD08-01S 1/8 19 15.2 17.6 28.5 21 48 44 18.5 15.9 53
    C-KQ2VD08-02S 1/4 24 51 45 51
    C-KQ2VD08-03S 3/8 25 52 45.5 60
    C-KQ2VD08-04S 1/2 21 28.5 55.5 47.5 82
    Ø10 C-KQ2VD10-02S 1/4 21 18.5 20.6 31.5 26.5 58 52 21 19.2 71
    C-KQ2VD10-03S 3/8 27.5 59 53 74
    C-KQ2VD10-04S 1/2 30.5 62 54 91
    Ø12 C-KQ2VD12-02S 1/4 26 20.9 25.2 34 28.5 64.5 58.5 21 21.6 118
    C-KQ2VD12-03S 3/8 29.5 65.5 59 113
    C-KQ2VD12-04S 1/2 32.5 68.5 60 125


    Applicable Tubing O.D
    (mm)     		Model Connection Thread
    T     		H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P Weight
    (g)

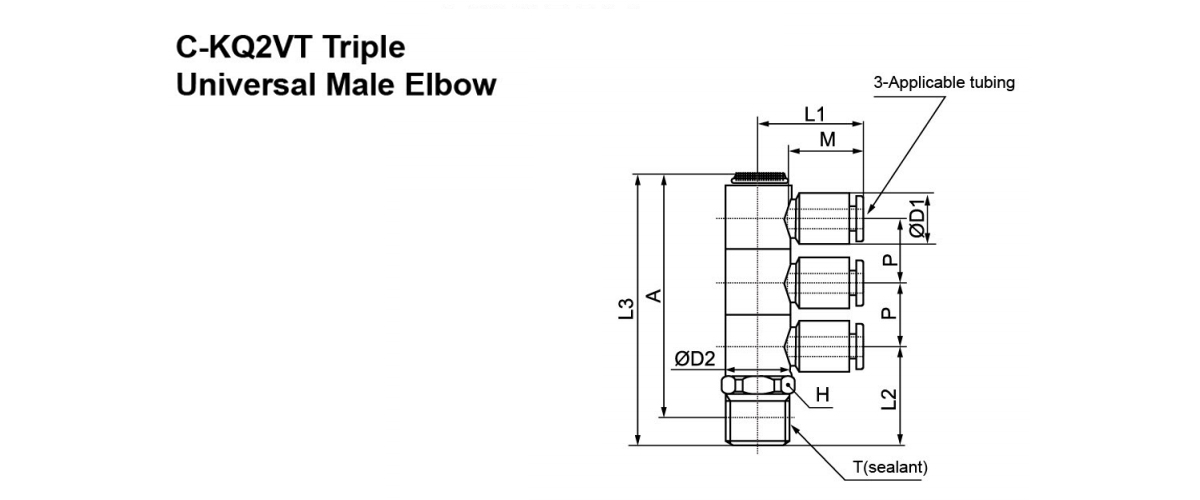

    Ø4 C-KQ2VT04-01S 1/8 14 10.4 13.4 22 18.5 54.5 50.5 16 13.4 29
    C-KQ2VT04-02S 1/4 21.5 57.5 51.5 34
    C-KQ2VT04-03S 3/8 17 23.5 59.5 53.5 48
    Ø6 C-KQ2VT06-01S 1/8 14 12.8 13.4 24.5 18.5 54.5 50.5 17 13.4 31
    C-KQ2VT06-02S 1/4 21.5 57.5 51.5 37
    C-KQ2VT06-03S 3/8 17 23.5 59.5 53.5 50
    Ø8 C-KQ2VT08-01S 1/8 19 15.2 17.6 28.5 21 64 60 18.5 15.9 71
    C-KQ2VT08-02S 1/4 24 67 61 66
    C-KQ2VT08-03S 3/8 25 68 61.5 75
    C-KQ2VT08-04S 1/2 21 28.5 71.5 63.5 96
    Ø10 C-KQ2VT10-02S 1/4 21 18.5 20.6 31.5 26.5 77.5 71.5 21 19.2 94
    C-KQ2VT10-03S 3/8 27.5 78.5 72
    C-KQ2VT10-04S 1/2 30.5 81.5 73.5 111
    Ø12 C-KQ2VT12-02S 1/4 26 20.9 25.2 34 28.5 86 80 21 21.6 153
    C-KQ2VT12-03S 3/8 29.5 87 80.5 143
    C-KQ2VT12-04S 1/2 32.5 90 82 154

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

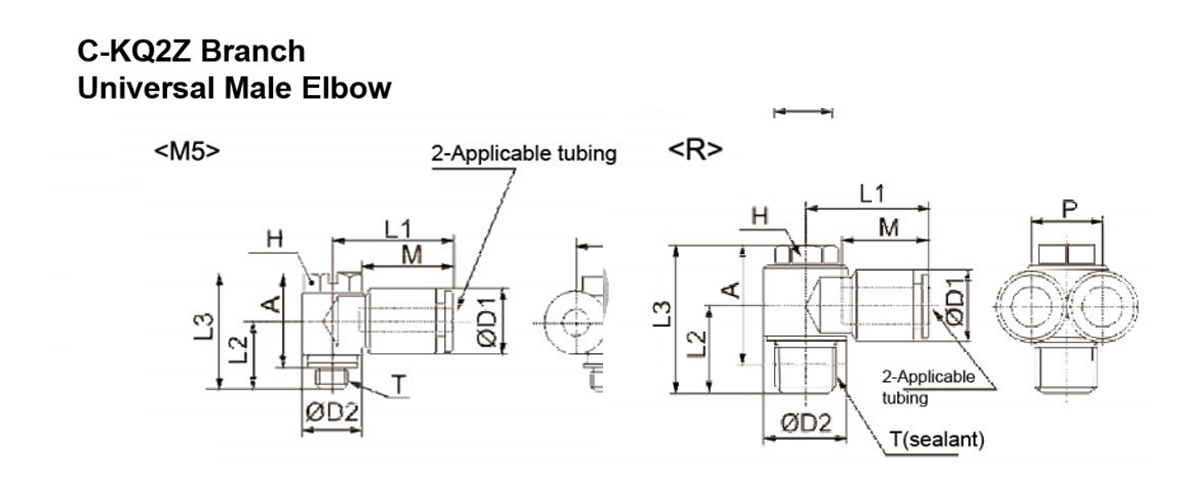

    Ø4 C-KQ2Z04-M5 M5×0.8 8 10.4 9.8 19.5 11 18.5 15 16 10.4 3.4 3.4 8
    C-KQ2Z04-01S 1/8 13.4 21 14.5 26.5 22.5 4.7 4.7 16
    Ø6 C-ZQ2Z06-01S 1/8 8 12.8 13.4 22 14.5 26.5 22.5 17 12.8 10.8 8.6 17
    C-ZQ2Z06-02S 1/4 14 20.6 25.5 19.5 35.5 29.5 39
    C-ZQ2Z06-03S 3/8 20.5 36.5 30 47
    Ø8 C-KQ2Z08-01S 1/8 12 15.2 17.6 26 15.5 28.5 24.5 18.5 15.2 20.5 14.2 27
    C-KQ2Z08-02S 1/4 18.5 31.5 25.5 33
    C-KQ2Z08-03S 3/8 14 20.6 27 20.5 36.5 30 49
    Ø10 C-KQ2Z10-02S 1/4 14 18.5 20.6 29 19.5 35.5 29.5 21 18.5 31.8 22.6 46
    C-KQ2Z10-03S 3/8 20.5 36.5 30 54
    Ø12 C-KQ2Z12-02S 3/8 17 20.9 25.2 32.5 22 39 32.5 22 20.9 44.6 35.3 71
    C-KQ2Z12-04S 1/2 25 42 34 88

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P Weight
    (g)

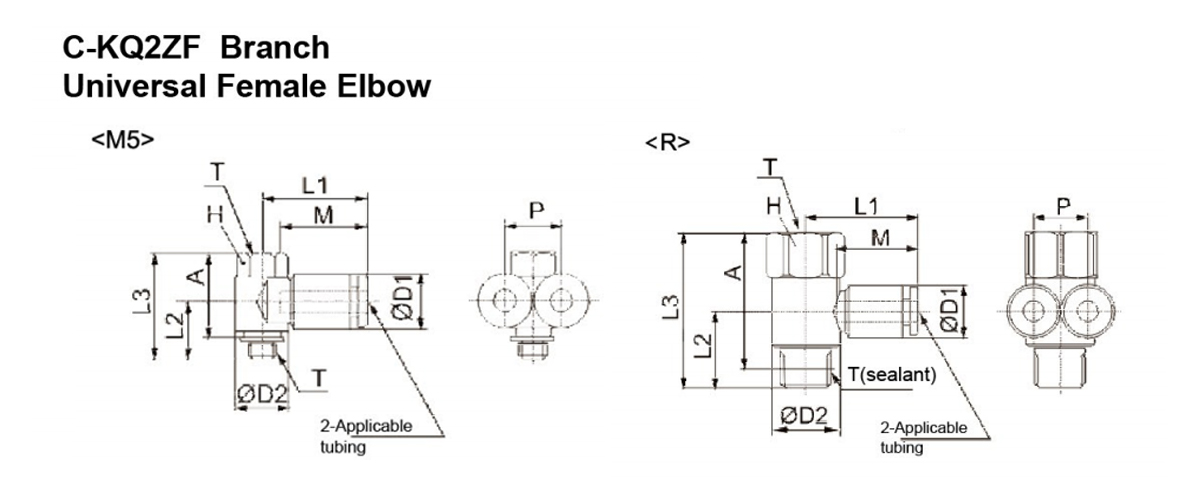

    Ø4 C-KQ2ZF04-M5 M5×0.8 8 10.4 9.8 19.5 11 20 16.5 16 10.4 8
    C-KQ2ZF04-01S 1/8 14 13.4 21 15.5 29.5 25.5 21
    Ø6 C-KQ2ZF06-01S 1/8 14 12.8 13.4 22 15.5 29.5 25.5 17 12.8 21
    C-KQ2ZF06-02S 1/4 19 20.6 25.5 22 41 35 47
    Ø8 C-KQ2ZF08-01S 1/8 17 15.2 17.6 25.5 17 31 27 18.5 15.2 32
    C-KQ2ZF08-02S 1/4 19 20.6 27 22 41 35 49
    Ø10 C-KQ2ZF10-02S 1/4 19 18.5 20.6 29 22 41 35 21 18.5 54
    C-KQ2ZF10-03S 3/8 22 25.2 31.5 24.5 45.5 39 74
    Ø12 C-KQ2ZF12-03S 3/8 22 20.9 25.2 32.5 24.5 45.5 39 22 20.9 77

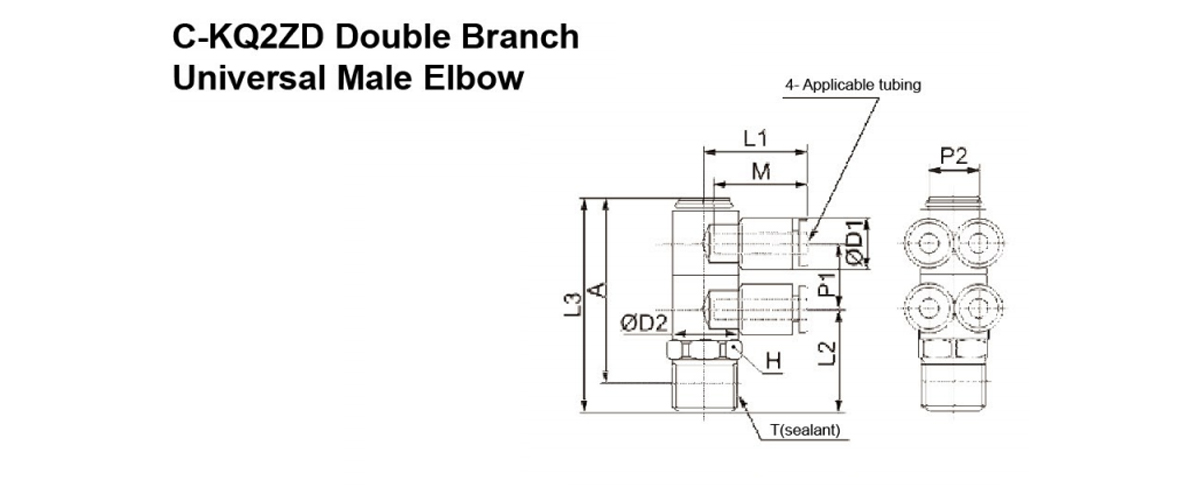

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P1 P2 Weight
    (g)
    Ø4 C-KQ2ZD04-01S 1/8 14 10.4 13.4 21 18.5 41 37 16 13.4 10.4 34
    C-KQ2ZD04-02S 1/4 21.5 44 38 40
    C-KQ2ZD04-03S 3/8 17 23.5 46 40 53
    Ø6 C-KQ2ZD06-01S 1/8 14 12.8 13.4 22 18.5 41 37 17 13.4 12.8 38
    C-KQ2ZD06-02S 1/4 21.5 44 38 43
    C-KQ2ZD06-03S 3/8 17 23.5 46 40 57
    Ø8 C-KQ2ZD08-01S 1/8 19 15.2 17.6 26 21 48 44 18.5 15.9 15.2 76
    C-KQ2ZD08-02S 1/4 24 51 45 72
    C-KQ2ZD08-03S 3/8 25 52 45.5 81
    C-KQ2ZD08-04S 1/2 21 28.5 55.5 47.5 102
    Ø10 C-KQ2ZD10-02S 1/4 21 18.5 20.6 29 26.5 58 52 21 19.2 18.5 111
    C-KQ2ZD10-03S 3/8 27.5 59 53
    C-KQ2ZD10-04S 1/2 30.5 62 54 128
    Ø12 C-KQ2ZD12-02S 1/4 26 20.9 25.2 32 28.5 64.5 58.5 22 21.6 20.9 178
    C-KQ2ZD12-03S 3/8 29.5 65.5 59 167
    C-KQ2ZD¹2-04S 1/2 32.5 68.5 60 179

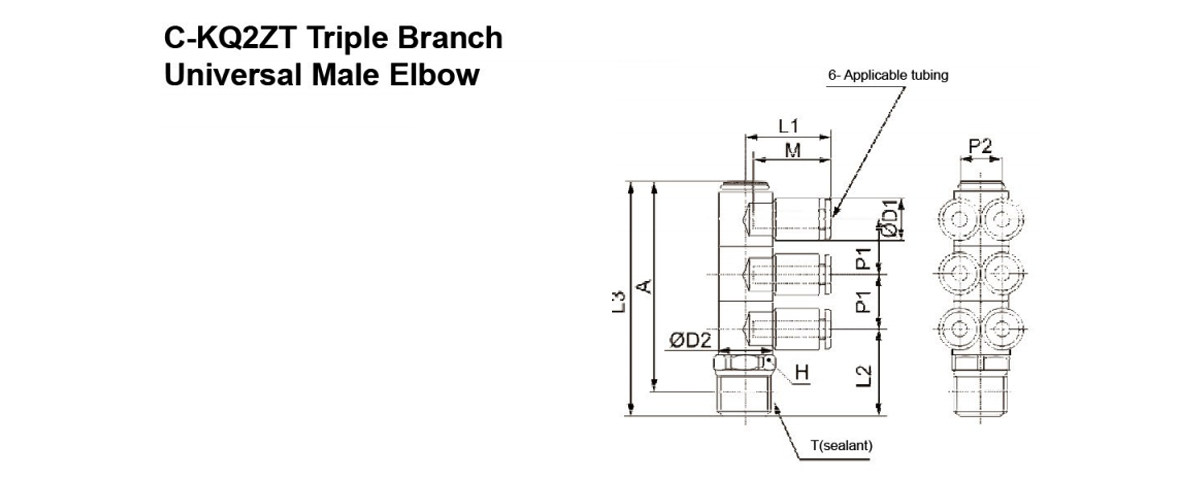

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P1 P2
    Weight
    (g)
    Ø4 C-KQ2ZT04-01S 1/8 14 10.4 13.4 21 18.5 54.5 50.5 16 13.4 10.4 25
    C-KQ2ZT04-02S 1/4 21.5 57.5 51.5 31
    C-KQ2ZT04-03S 3/8 17 23.5 59.5 53.5 44
    Ø6 C-KQ2ZT06-01S 1/8 14 12.8 13.4 22 18.5 54.5 50.5 17 13.4 12.8 27
    C-KQ2ZT06-02S 1/4 21.5 57.5 51.5 33
    C-KQ2ZT06-03S 3/8 17 23.5 59.5 53.5 46
    Ø8 C-KQ2ZT08-01S 1/8 19 15.2 17.6 26 21 64 60 18.5 15.9 15.2 56
    C-KQ2ZT08-02S 1/4 24 67 61 54
    C-KQ2ZT08-03S 3/8 25 68 61.5 62
    C-KQ2ZT08-04S 1/2 21 28.5 71.5 63.5 85
    Ø10 C-KQ2ZT10-02S 1/4 21 18.5 20.6 29 26.5 77.5 71.5 21 19.2 18.5 83
    C-KQ2ZT10-03S 3/8 27.5 78.5 72 85
    C-KQ2ZT10-04S 1/2 30.5 81.5 73.5 102
    Ø12 C-KQ2ZT12-02S 1/4 26 20.9 25.2 32 28.5 86 80 22 21.6 20.9 134
    C-KQ2ZT12-03S 3/8 29.5 87 80.5 130
    C-KQ2ZT12-04S 1/2 32.5 90 82 141

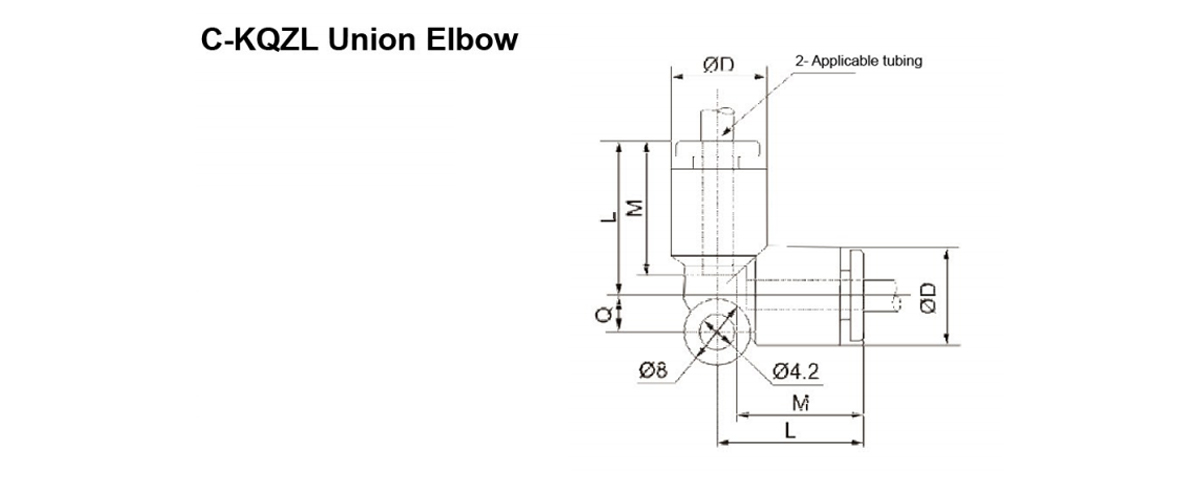

    Applicable Tubing O.D
    (mm)     		Model ØD L Q M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2L04-00 10.4 18 4.5 16 4.2 4.2 6
    Ø6 C-KQ2L06-00 12.8 20 5.3 17 11.4 9.0 6
    Ø8 C-KQ2L08-00 15.2 23 6 18.5 21.6 14.9 10
    Ø10 C-KQ2L10-00 18.5 26.5 6.8 21 35.2 25.0 17
    Ø12 C-KQ2L12-00 20.9 28.5 7.5 22 50.2 39.7 21
    Ø16 C-KQ2L16-00 26.5 34 10 25 100 (84) 29

    Applicable Tubing O.D
    (mm)     		Model ØD L1 L2 Q1 Q2 M p Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2LU04-00 10.4 18.5 24 18.5 10 16 10.4 6.0 4.1 6
    Ø6 C-KQ2LU06-00 12.8 21 27.5 20.5 12 17 12.8 13.9 11.0 8
    Ø8 C-KQ2LU08-00 15.2 24 32 24.5 14 18.5 15.2 26.3 18.2 15
    Ø10 C-KQ2LU10-00 18.5 27 36.5 28 16 21 18.5 40.8 29.0 25
    Ø12 C-KQ2LU12-00 20.9 29 40 30 18 22 20.9 57.2 45.2 32

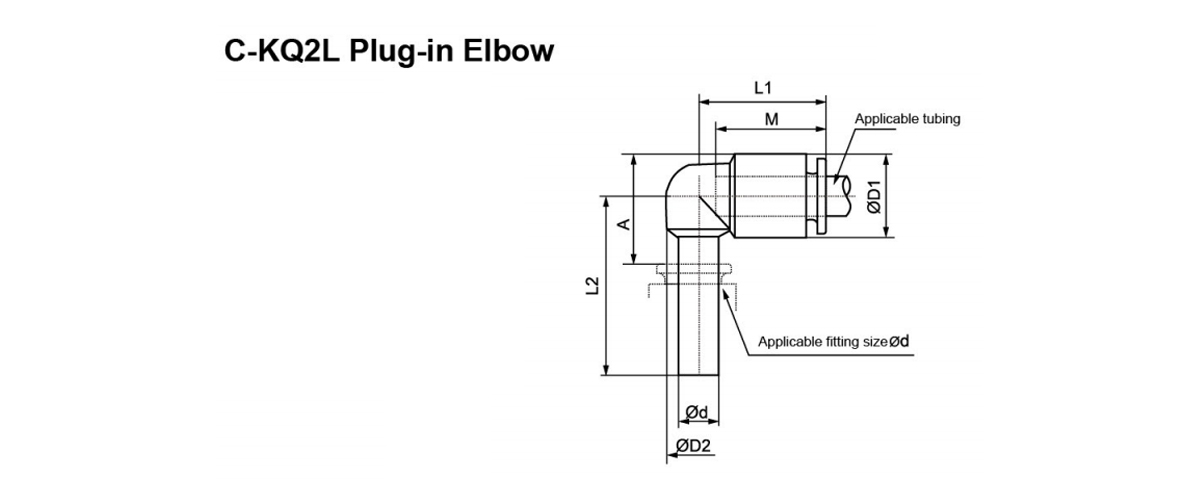

    Applicable Tubing O.D
    (mm)     		Applicable Fitting Size
    od     		Model ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane
    Ø4 Ø4 C-KQ2L04-99 10.4 8 18 25 14.5 16 4.2 4.2 3
    Ø6 Ø6 C-KQ2L06-99 12.8 10 20 27.5 17 17 11.4 9.0 3
    Ø8 Ø8 C-KQ2L08-99 15.2 12 22.5 31.5 21 18.5 21.6 14.9 5
    Ø10 Ø10 C-KQ2L10-99 18.5 14 25.5 35.5 23.5 21 35.2 25.0 9
    Ø12 Ø12 C-KQ2L12-99 20.9 16 27 37.5 26 22 50.2 39.7 10
    Ø16 Ø16 C-KQ2L16-99 26.5 20.9 34 53 41 25 100 (84) 42

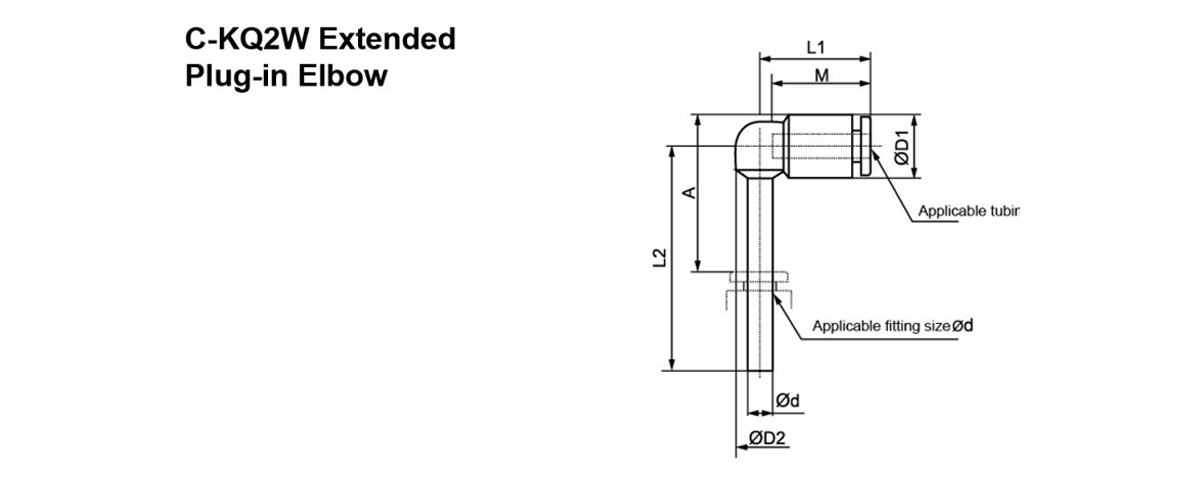

    Applicable
    Tubing O.D
    (mm)
    Applicable Fitting Size
    od     		Model ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 Ø4 C-KQ2W04-99 10.4 10 18.1 32.1 21.5 16 4.2 4.2 13
    Ø6 Ø6 C-KQ2W06-99 12.8 10 20 34.5 24 17 11.4 9.0 14
    Ø8 Ø8 C-KQ2W08-99 15.2 12 23.1 39.5 29 18.5 21.6 14.9 16
    Ø10 Ø10 C-KQ2W10-99 18.5 17 26.6 45.5 33.5 21 35.2 25.0 19
    Ø12 Ø12 C-KQ2W12-99 20.9 17 28.6 47.5 36 22 50.2 39.7 23

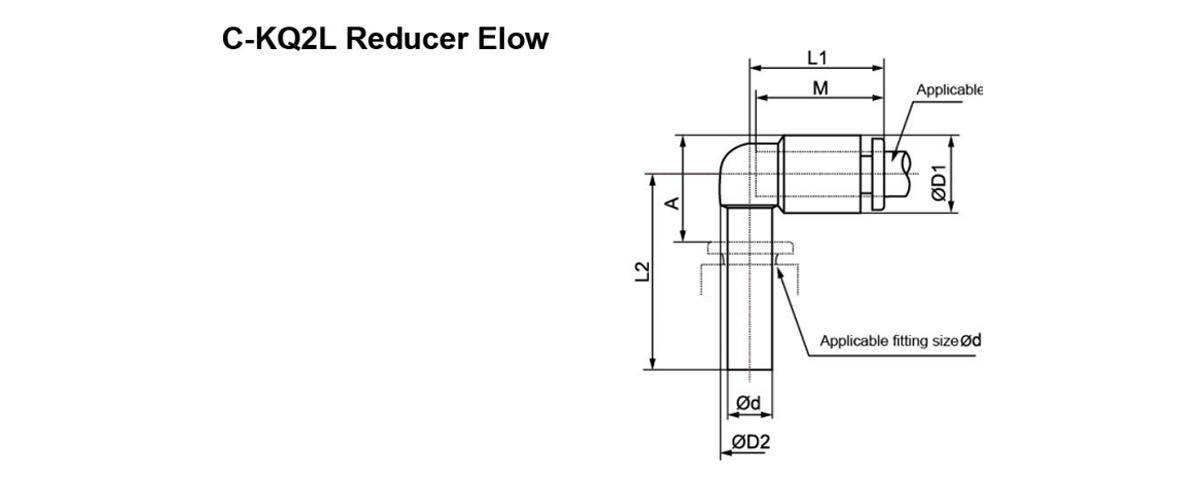

    Applicable Tubing O.D
    (mm)     		Applicable Fitting Size
    od     		Model ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 Ø6 C-KQ2L04-06(99) 10.4 8 18 33 21.5 16 4.2 4.2 13
    Ø8 C-KQ2L04-08(99) 10 42 29 21
    Ø6 Ø8 C-KQ2L06-08(99) 12.8 10 19.5 37.5 25 17 11.4 9.0 22
    Ø10 C-KQ2L06-10(99) 20 45.5 31 29
    Ø8 Ø10 C-KQ2L08-10(99) 15.2 12 22.5 41.5 28.5 18.5 21.6 14.9 30
    Ø12 C-KQ2L08-12(99) 23 48.5 34 37
    Ø10 Ø12 C-KQ2L10-12(99) 18.5 17 26.5 52 39.5 21 35.2 25.0 39
    Ø12 Ø16 C-KQ2L12-16(99) 20.9 17 28.5 59.5 44.5 22 50.2 39.7 63

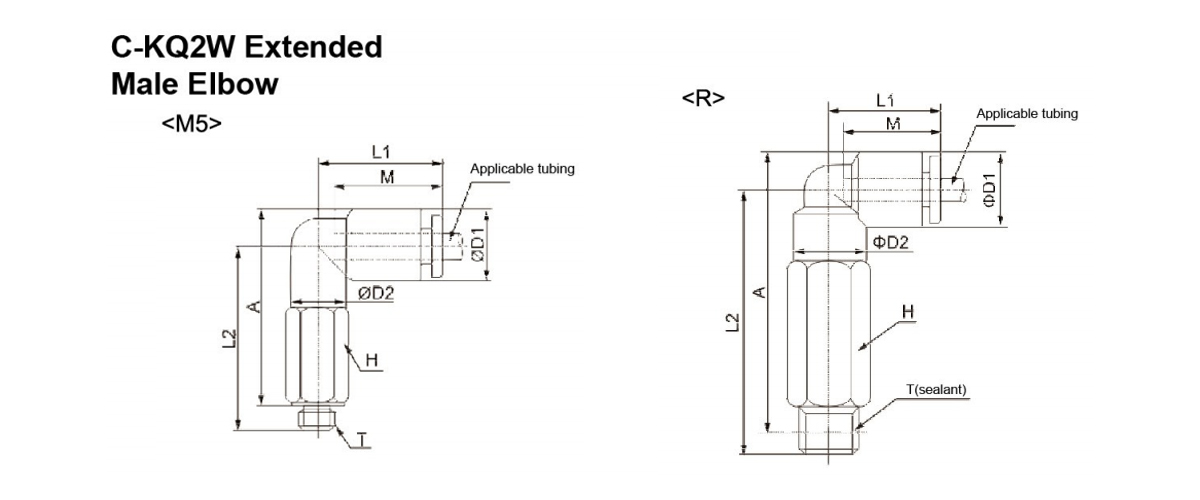

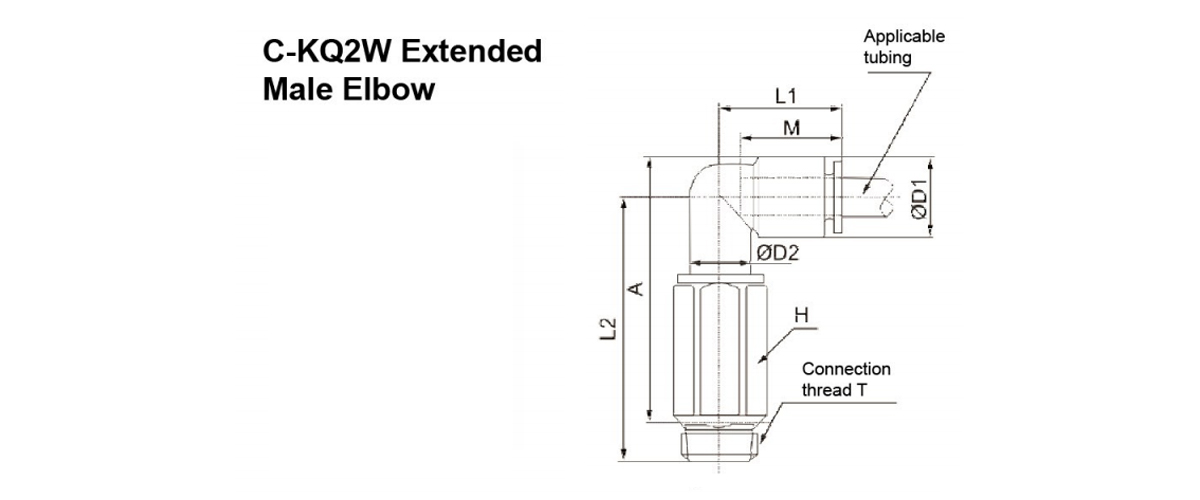

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2W04-01S 18 10 10.4 10 18 37.5 38.5 16 4.0 4.0 23
    C-KQ2W04-02S 1/4 14 43.5 42.5 38
    Ø6 C-KQ2W06-01S 1/8 10 12.8 10 20 40 42.5 17 10.9 8.6 26
    C-KQ2W06-02S 1/4 14 46 46.5 41
    C-KQ2W06-03S 3/8 17 48 48 67
    Ø8 C-KQ2W08-01S 18 12 15.2 12 23 43.5 47 18.5 20.5 14.2 30
    C-KQ2W08-02S 1/4 14 49.5 51 47
    C-KQ2W08-03S 3/8 17 51.5 52.5 74
    Ø10 C-KQ2W10-02S 1/4 17 18.5 17 26.5 58.5 59.5 21 33.5 23.8 66
    C-KQ2W10-03S 8 58.5 61 76
    C-KQ2W10-04S 1/2 22 65 66 145
    Ø12 C-KQ2W12-02S 1/4 17 20.9 17 28.5 57.5 62 22 47.7 37.7 68
    C-KQ2W12-03S 3/8 59.5 63.5 78
    C-KQ2W12-04S 1/2 22 66 68.5 147
    Ø16 C-KQ2W16-03S 3/8 22 26.5 20.9 34 69.5 76 25 71 (71) 101
    C-KQ2W16-04S 72 75 80 100 (84) 105

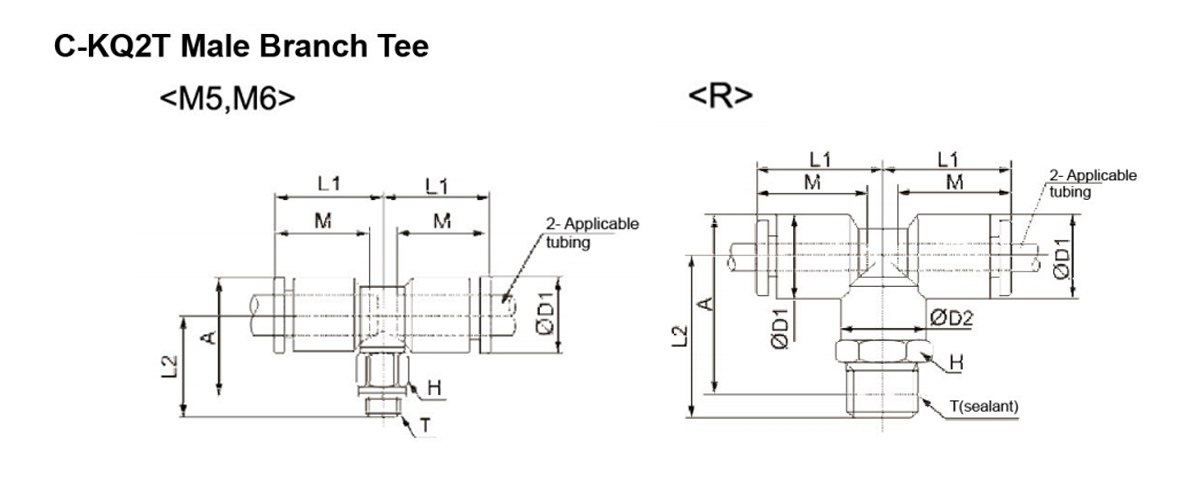

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø3.2 C-KQ2T23-01S 1/8 10 9.6 10 17.5 21.5 22.5 15.5 3.4 2.9 10
    C-KQ2T23-02S 1/4 4 25.5 24.5 20
    Ø4 C-KQ2T04-01S 1/8 10 10.4 10 18 22 23 16 6.0 4.1 13
    C-KQ2T04-02S 1/4 14 26 25 19
    Ø6 C-KQ2T06-01S 1/8 10 12.8 10 20 23 25.5 17 13.9 11.0 12
    C-KQ2T06-02S 1/4 14 27 27.5 20
    C-KQ2T06-03S 3/8 17 29 29 34
    Ø8 C-KQ2T08-01S 1/8 12 15.2 12 23 24.5 28 18.5 26.3 18.2 14
    C-KQ2T08-02S 1/4 14 28.5 30 22
    C-KQ2T08-03S 3/8 17 30.5 31.5 36
    Ø10 C-KQ2T10-01S 1/8 17 18.5 17 26.5 27 32 21 40.8 29.0 31
    C-KQ2T10-02S 1/4 30 33 29
    C-KQ2T10-03S 3/8 32 34.5 39
    C-KQ2T10-04S 1/2 22 36 37 66
    Ø12 C-KQ2T12-02S 1/4 17 20.9 17 28.5 31 35.5 22 57.2 45.2 31
    C-KQ2T12-03S 3/8 33 37 41
    C-KQ2T12-04S 1/2 22 37 39.5 38
    Ø16 C-KQ2T16-03S 3/8 22 26.5 20.9 34 38 44.5 25 71 71 112
    C-KQ2T16-04S 1/2 40.5 46 100 100 116

    Applicable Tubing O.D (mm) Model ØD L Q M Effective Area
    (mm²)     		Weight
    (g)
    ⓐ ⓑ 1 2 Nylon Urethane

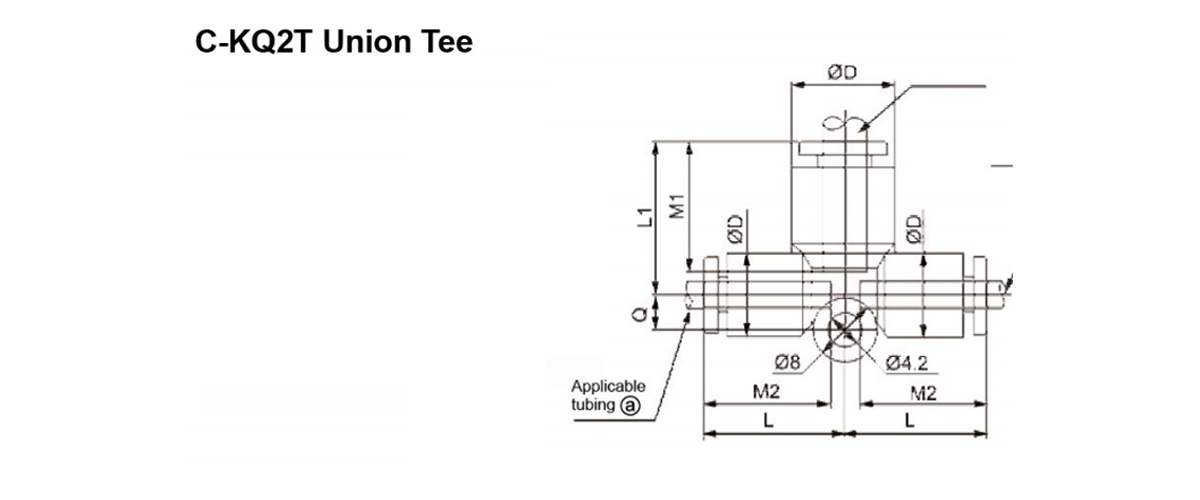

    Ø4 C-KQ2T04-00 10.4 18 4.5 16 6.4 4.4 7
    Ø6 C-KQ2T06-00 12.8 20 5.3 17 13.4 10.6 10
    Ø8 C-KQ2T08-00 15.2 23 6 18.5 25.6 17.7 15
    Ø10 C-KQ2T10-00 18.5 26.5 6.8 21 40 28.4 25
    Ø12 C-KQ2T12-00 20.9 28.5 7.5 22 57.4 45.4 29
    Ø16 C-KQ2T16-00 26.5 34 10 25 100 (84) 40
    Ø4 Ø6 C-KQ2T04-06 12.8 20 4.5 17 16 7.1 6.5 5
    Ø6 Ø8 C-KQ2T06-08 15.2 23 5.3 18.5 17 16.4 16.4 8
    Ø8 Ø10 C-KQ2T08-10 18.5 26.5 6 21 18.5 36 27.2 14
    Ø10 Ø12 C-KQ2T10-12 20.9 28.5 6.8 22 21 56 44.5 21
    Ø12 Ø16 C-KQ2T12-16 26.5 34 10 25 22 108.5 (92.2) 88
    Ø6 Ø4 C-KQ2T06-04 120.8 20 5.3 16 17 6.4 4.4 10
    Ø8 Ø6 C-KQ2T08-06 15.2 23 6 17 18.5 13.4 10.6 15
    Ø10 Ø8 C-KQ2T10-08 18.5 26.5 7.5 18.5 21 25.6 17.7 25
    Ø12 Ø10 C-KQ2T12-10 20.9 28.5 7.5 21 22 40 28.4 29
    Ø16 Ø12 C-KQ2T16-12 26.5 34 10 22 25 57.4 45.4 90

    Applicable Tubing O.D (mm) Model ØD L Q M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

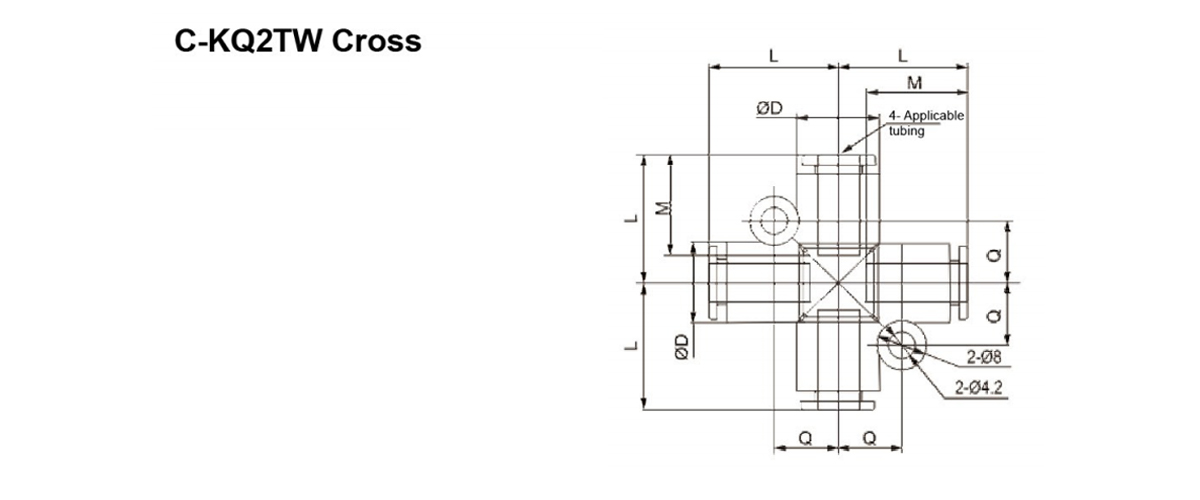

    Ø4 C-KQ2TW04-00 10.4 18 8.7 16 6.4 4.4 9
    Ø6 C-KQ2TW06-00 12.8 20 9.9 17 13.4 10.6 13
    Ø8 C-KQ2TW08-00 15.2 23 11.1 18.5 25.6 17.7 20
    Ø10 C-KQ2TW10-00 18.5 26.5 12.8 21 40 28.4 33
    Ø12 C-KQ2TW12-00 20.9 28.5 13.9 22 57.4 45.4 39

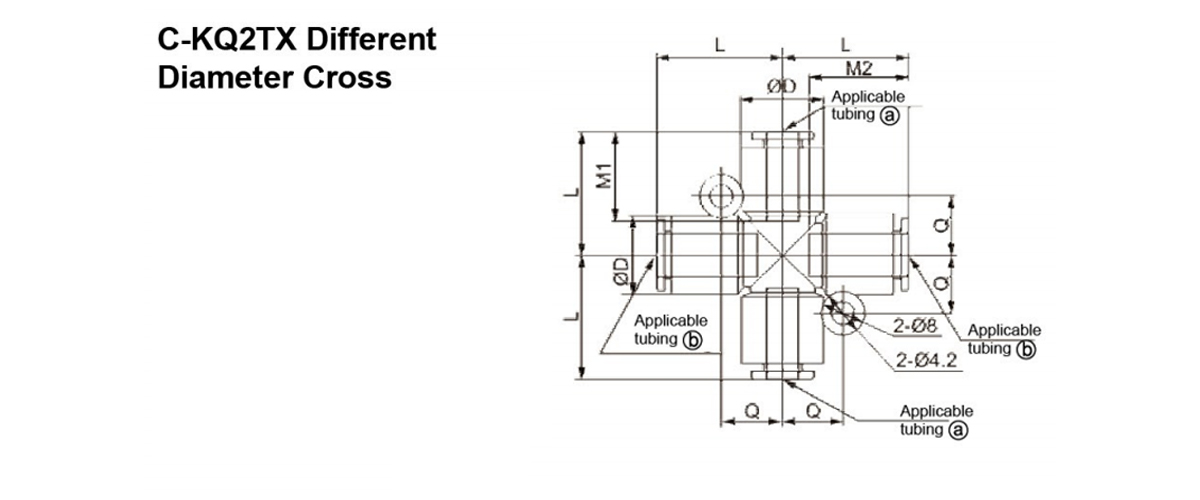

    Applicable
    Tubing O.D
    (mm)     		Model ØD L Q M1 M2 Effective Area
    (mm²)     		Weight
    (g)
    ⓐ ⓑ Nylon Urethane
    Ø6 Ø8 C-KQ2TX06-08 15.2 23 11.1 18.5 17 13.4 10.6 13
    Ø8 Ø10 C-KQ2TX08-10 18.5 26.5 12.8 21 18.5 25.6 17.7 27
    Ø10 Ø12 C-KQ2TX10-12 20.9 28.5 13.9 22 21 40 28.4 36

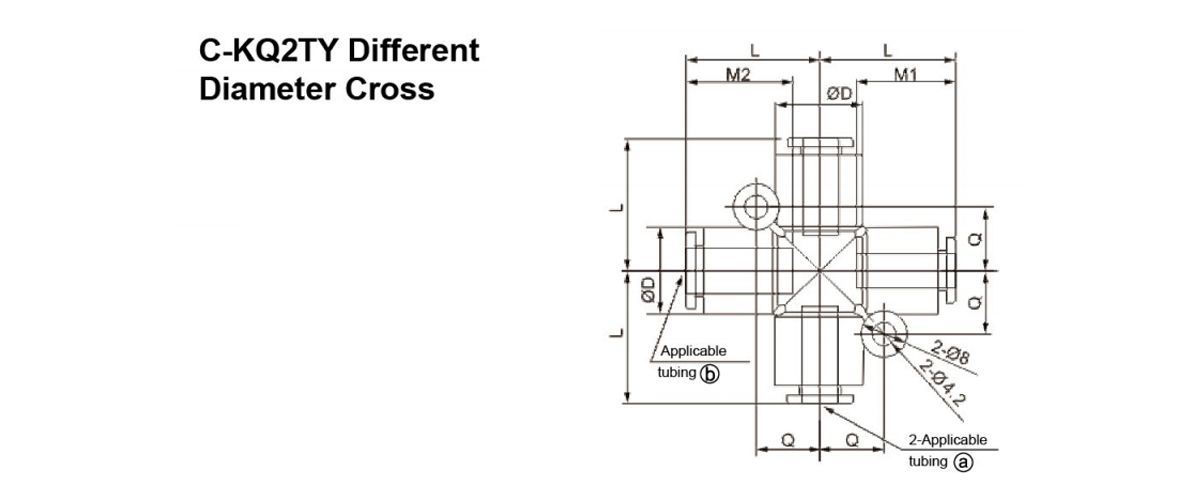

    Applicable
    Tubing O.D
    (mm)     		Model ØD L Q M1 M2 Effective Area
    (mm²)     		Weight
    (g)
    ⓐ ⓑ Nylon Urethane
    Ø6 Ø8 C-KQ2TY06-08 15.2 23 11.1 17 18.5 13.4 10.6 15
    Ø8 Ø10 C-KQ2TY08-10 18.5 26.5 12.8 18.5 21 25.6 17.7 23
    Ø10 Ø12 C-KQ2TY10-12 20.9 28.5 13.9 21 22 40 28.4 35

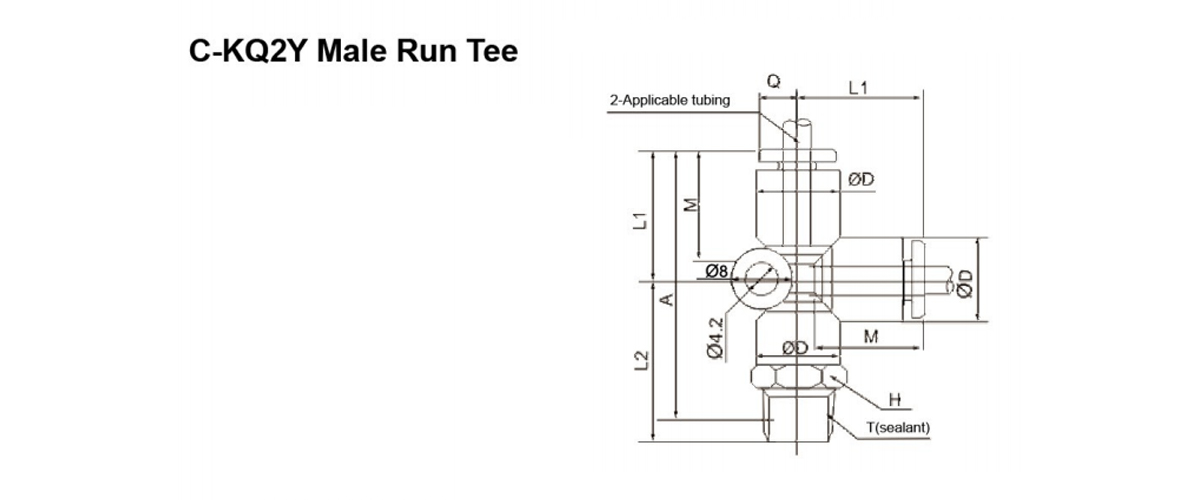

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD Q L1 L2 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

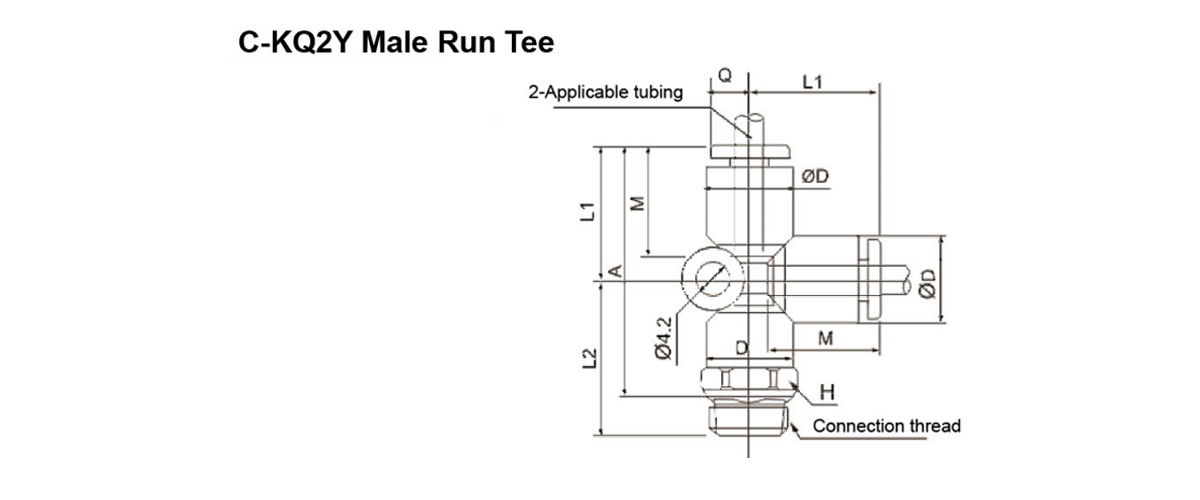

    Ø04 C-KQ2Y 04-01S R1/8 14 10.5 4.6 18.1 22.1 36.1 16.1 6.4 4.4 13
    C-KQ2Y 04-02S R1/4 26.1 38.1 19
    Ø06 C-KQ2Y 06-01S R1/8 12.9 5.4 20.1 23.1 39.1 17.1 13.4 10.6 12
    C-KQ2Y 06-02S R1/4 27.1 41.1 20
    C-KQ2Y 06-03S R3/8 29.1 42.6 34
    Ø08 C-KQ2Y 08-01S R1/8
    17     		15.3 6.1 23.1 24.6 43.6 18.6 25.6 12.7 14
    C-KQ2Y 08-02S R1/4 28.6 45.6 22
    C-KQ2Y 08-03S R3/8 30.6 47.2 36
    Ø10 C-KQ2Y 10-01S R1/8 19 18.6 6.9 26.6 27.1 49.7 21 40 28.4 31
    C-KQ2Y 10-02S R1/4 30.1 50.7 29
    C-KQ2Y 10-03S R3/8 32.1 52.1 39
    C-KQ2Y 10-04S R1/2 22 36.1 54.6 66
    Ø12 C-KQ2Y 12-02S R1/4 21 7.6 28.6 31.1 53.6 22.1 57.4 45.4 31
    C-KQ2Y 12-03S R3/8 33.1 55.2 41
    C-KQ2Y 12-04S R1/2 37.1 57.6 68

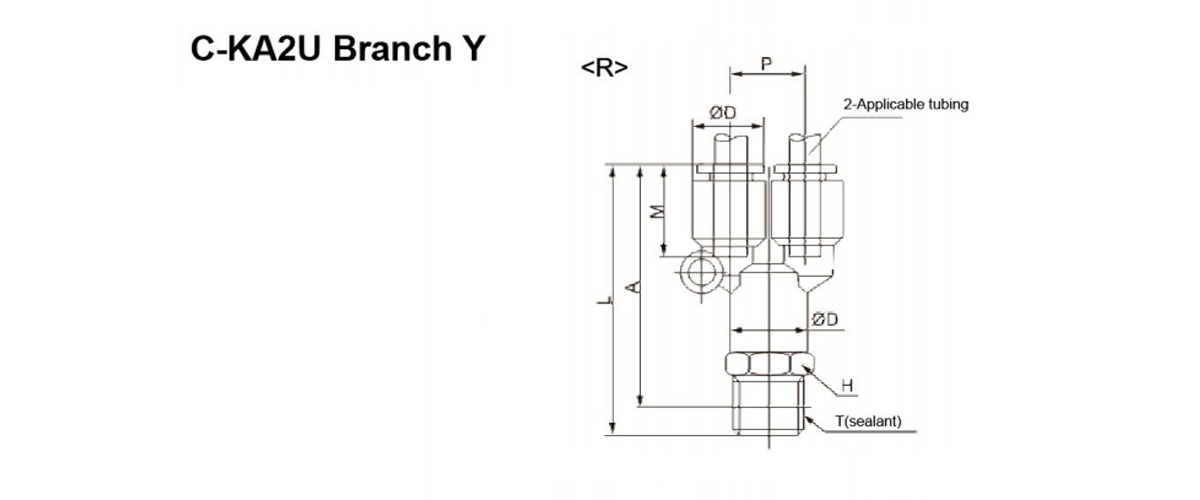

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L P A M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

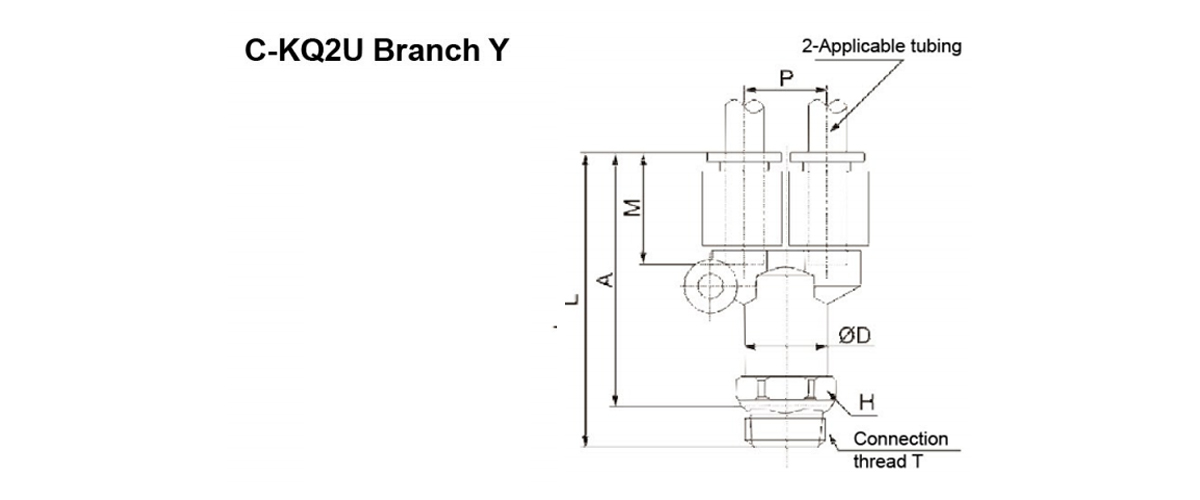

    Ø4 C-KQ2U04-01S 1/8 11 10.4 42 10.4 38 16 4.2 4.2 11
    C-KQ2U04-02S 1/4 14 46 40 20
    Ø6 C-KQ2U06-01S 1/8 13 12.8 45.5 12.8 41.5 17 13.4 10.6 11
    C-KQ2U06-02S 1/4 14 49 43 21
    C-KQ2U06-03S 3/8 17 51 44.5 34
    Ø8 C-KQ2U08-01S 1/8 17 15.2 52.5 15.2 48.5 18.5 25.6 17.7 15
    C-KQ2U08-02S 1/4 55.5 49.5 23
    C-KQ2U08-03S 3/8 56.5 50 35
    Ø10 C-KQ2U10-02S 1/4 19 18.5 61 18.5 55 21 40 28.4 30
    C-KQ2U10-03S 3/8 62 55.5 40
    C-KQ2U10-04S 1/2 22 65 57 65
    Ø12 C-KQ2U12-02S 1/4 22 20.9 64.5 20.9 58.5 22 57.4 45.4 32
    C-KQ2U12-03S 3/8 65.5 59 40
    C-KQ2U12-04S 1/2 68.5 60.5 65
    Ø16 C-KQ2U16-03S 27 26.5 76 26.5 69.5 25 81 (81) 106
    C-KQ2U16-04S 79 71 113 (96) 111

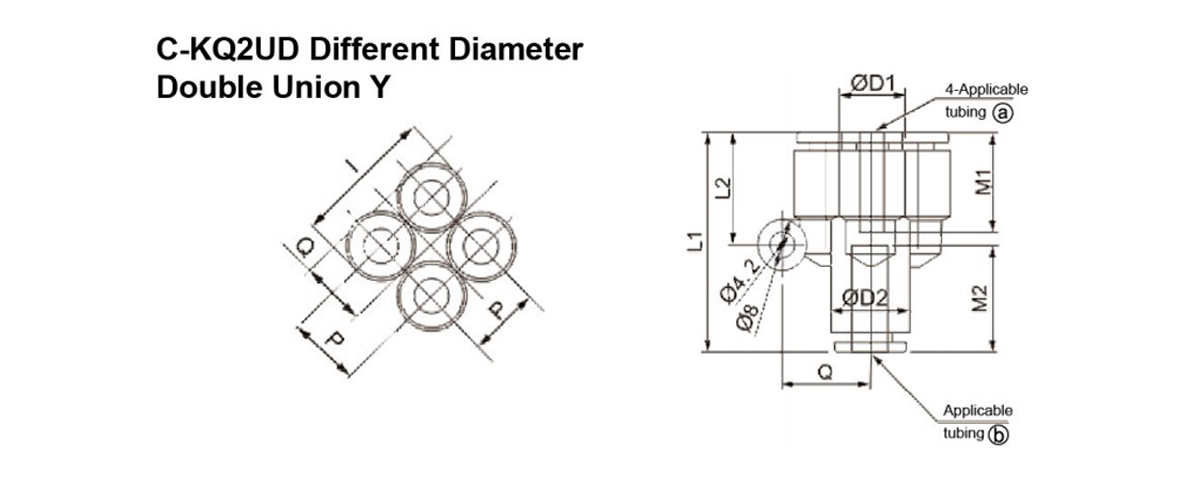

    Applicable
    Tubing O.D
    (mm)     		Model ØD1 ØD2 L1 L2 P I Q M1 M2 Effective Area
    (mm²)     		Weight
    (g)
    ⓐ ⓑ Nylon Urethane
    Ø4 Ø6 C-KQ2UD04-06 10.4 12.8 35.5 18.2 10.4 21 9.7 16 17 4.2 4.2 10
    Ø6 Ø8 C-KQ2UD06-08 12.8 15.2 40.5 20.3 12.8 26 11.7 17 18.5 13.4 10.6 17

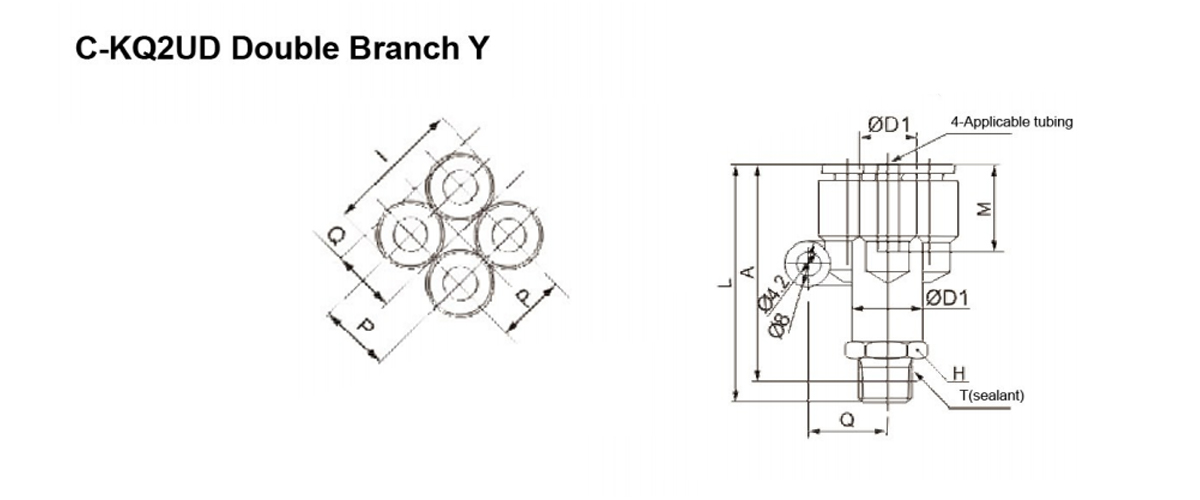

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L I A Q M P
    Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2UD04-01S 1/8 13 10.4 12.8 43.5 21 39.5 9.7 16 10.4 4.2 4.2 17
    C-KQ2UD04-02S 1/4 14 47 41 25
    Ø6 C-KQ2UD06-01S 1/8 17 12.8 15.2 50.5 26 46.5 11.7 17 12.8 13.4 10.6 29
    C-KQ2UD06-02S 1/4 53.5 47.5

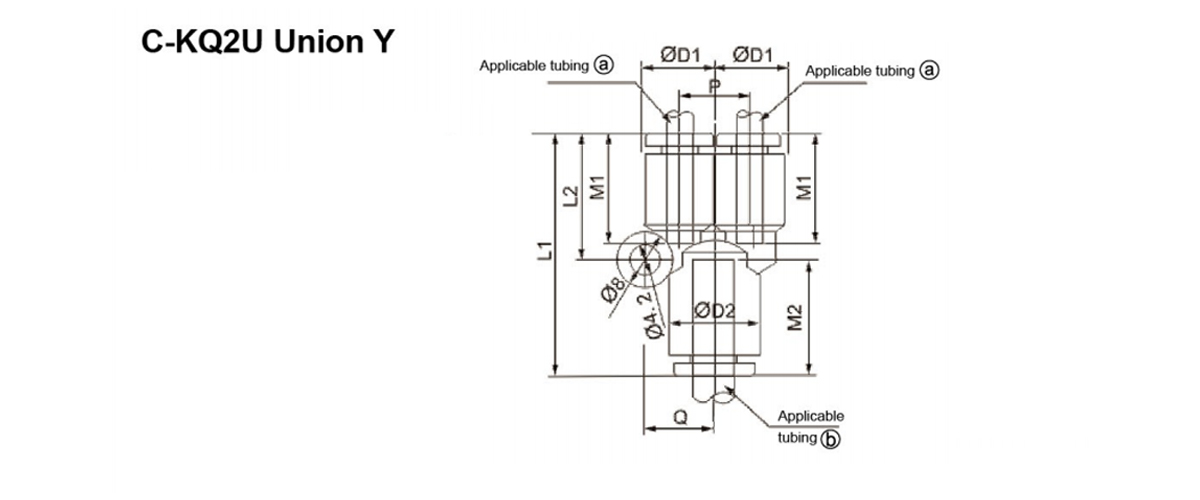

    Applicable Tubing O.D
    (mm)     		Model ØD L1 L2 P Q M Effective Area
    (mm²)     		Weight
    (g)
    ⓐ ⓑ 1 2 Nylon Urethane
    Ø4 C-KQ2U04-00 10.4 34 18 10.4 9.7 16 4.2 4.2 7
    Ø6 C-KQ2U06-00 12.8 34 20 12.8 11.7 17 13.4 10.6 9
    Ø8 C-KQ2U08-00 15.2 42.5 24.5 15.2 13.7 18.5 25.6 17.7 11
    Ø10 C-KQ2U10-00 18.5 48 27.5 18.5 16.1 21 40 28.4 16
    Ø12 C-KQ2U12-00 20.9 51 30 20.9 18.1 22 57.4 45.4 23
    Ø16 C-KQ2U16-00 26.5 61.5 36.5 26.5 23 25 113 (96) 54
    Ø4 Ø6 C-KQ2U04-06 12.8 35 18 10.4 9.7 16 17 4.2 4.2 6
    Ø6 Ø8 C-KQ2U06-08 15.2 39.5 20 12.8 11.7 17 18.5 13.4 10.6 11
    Ø8 Ø10 C-KQ2U08-10 18.5 45 24.5 15.2 13.7 18.5 21 25.6 17.1 18
    Ø10 Ø12 C-KQ2U10-12 20.9 49 27.5 18.5 16.1 21 22 40 28.4 27
    Ø12 Ø16 C-KQ2U12-16 26.5 66.5 41.5 26.5 23 22 25 57.4 45.4 100
    Ø6 Ø4 C-KQ2U06-04 12.8 35 18 10.4 9.7 17 16 4.2 4.2 6
    Ø8 Ø6 C-KQ2U08-06 15.2 39.5 20 12.8 11.7 18.5 17 13.4 10.6 11
    Ø10 Ø8 C-KQ2U10-08 18.5 45 24.5 15.2 13.7 21 18.5 25.6 17.1 18
    Ø12 Ø10 C-KQ2U12-10 20.9 49 27.5 18.5 16.1 22 21 40 28.4 27
    Ø16 Ø12 C-KQ2U16-12 26.5 66.5 41.5 26.5 23 25 22 57.4 45.4 100

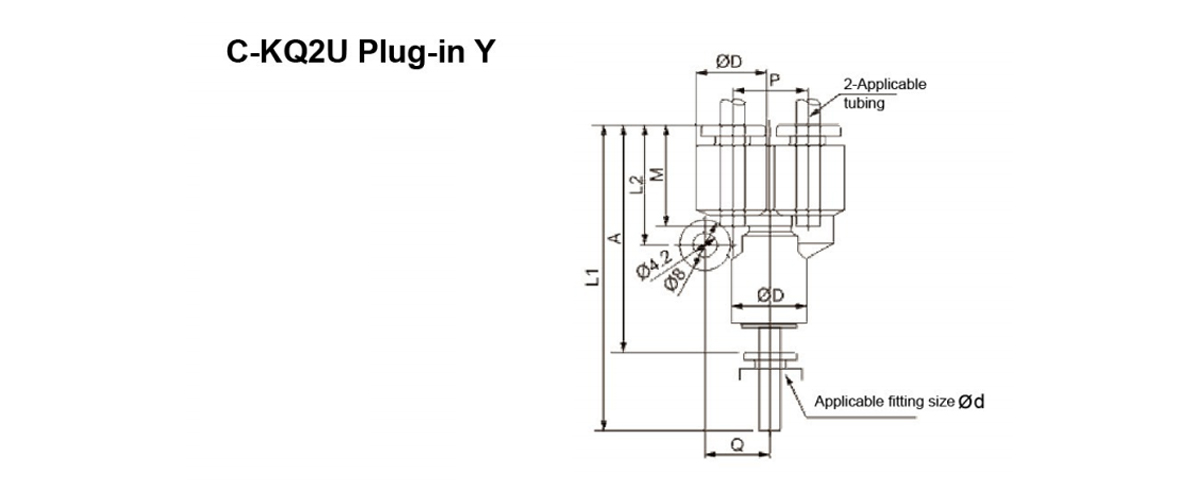

    Applicable
    Tubing
    (mm)     		Applic-
    able Fitting
    Size
    ØD     		Model ØD L1 L2 P Q A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 Ø4 C-KQ2U04-99 10.4 51.5 18 10.4 9.7 35.5 16 4.2 4.2 22
    Ø6 Ø6 C-KQ2U06-99 12.8 55.5 20 12.8 11.7 38.5 17 13.4 10.6 28
    Ø8 Ø8 C-KQ2U08-99 15.2 64.5 24.5 15.2 13.7 46 18.5 25.6 17.7 21
    Ø10 Ø10 C-KQ2U10-99 18.5 71.5 27.5 18.5 16.1 50.5 21 40 28.4 36
    Ø12 Ø12 C-KQ2U12-99 20.9 75.5 30 20.9 18.1 53.5 22 57.4 45.4 32
    Ø16 Ø16 C-KQ2U16-99 26.5 90 36.5 26.5 23 65 25 113 (96) 88

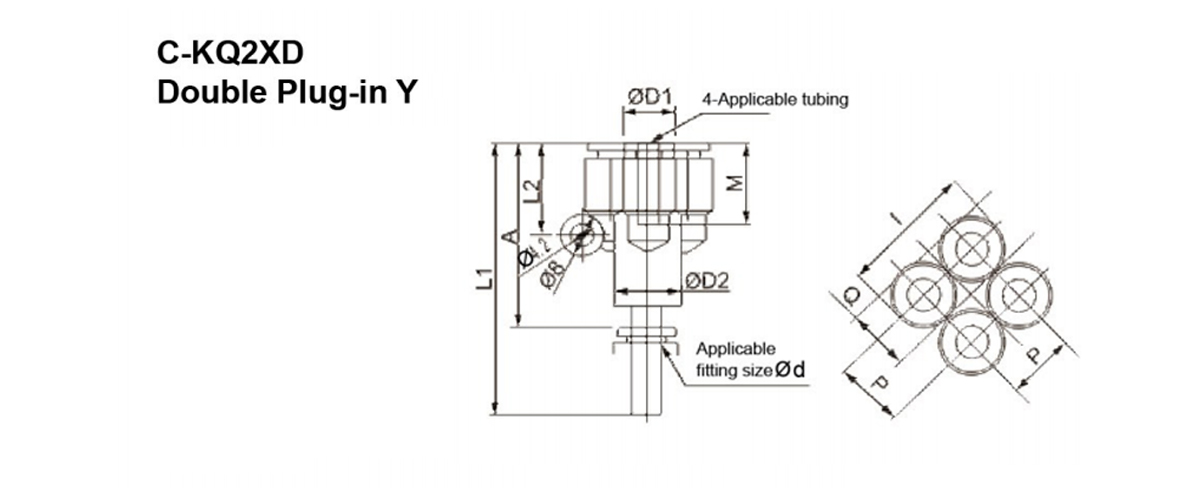

    Applicable
    Tubing
    (mm)
    Applic-
    able Fitting
    Size
    XD     		Model ØD1 ØD2 L1 L2 I Q A P M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 Ø6 C-KQ2XD04-06 10.4 12.8 54 18.2 21 9.7 37 10.4 16 4.2 4.2 10
    Ø6 88 C-KQ2XD06-08 12.8 15.2 62.5 20.3 26 11.7 44 12.8 17 13.4 10.6 23

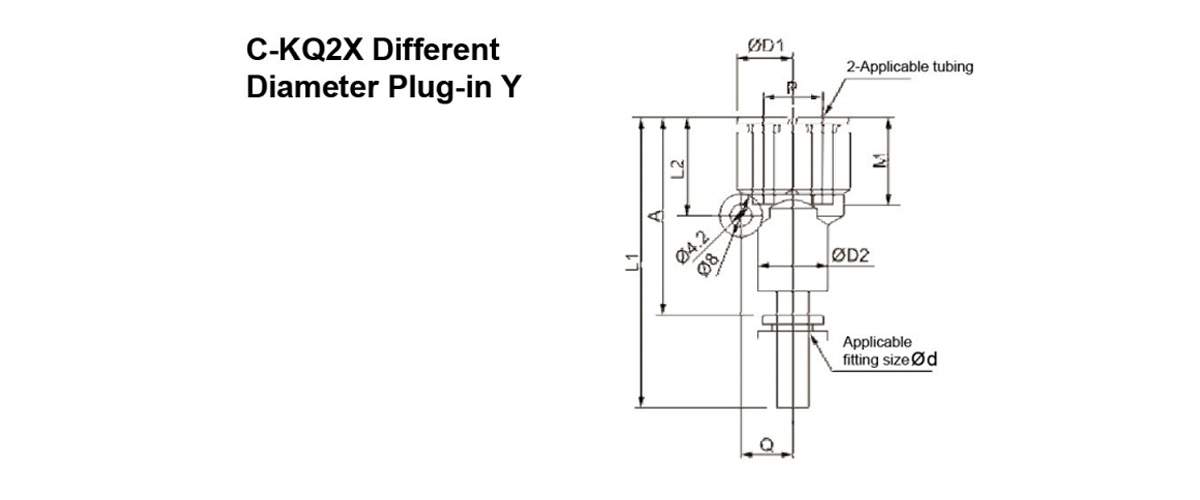

    Applicable
    Tubing
    (mm)     		Applic-
    able Fitting
    Size
    ØD     		Model ØD1 ØD2 L1 L2 A P Q M Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane
    Ø4 Ø6 C-KQ2X04-06 10.4 12.8 53.5 18.5 36.5 10.4 9.7 16 4.2 4.2 17
    Ø6 Ø8 C-KQ2X06-08 12.8 15.2 61.5 20.5 43 12.8 11.7 17 13.4 10.6 28
    Ø8 Ø10 C-KQ2X08-10 15.2 18.5 68.5 24.5 47.5 15.2 13.7 18.5 25.6 17.1 38
    Ø10 Ø12 C-KQ2X10-12 18.5 20.9 73.5 27.5 51.5 18.5 16.1 21 40 28.4 52

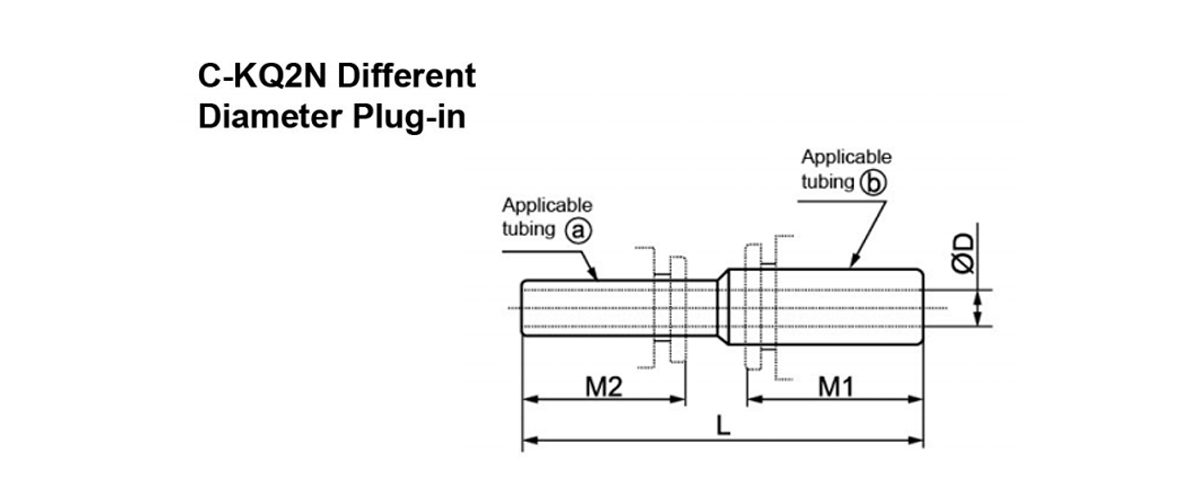

    Applicable Tubing
    (mm)     		Model L M1 M2 ØD Weight
    (g)
    ⓐ ⓑ
    Ø4 Ø6 C-KQ2N04-06 38 17 16 2.5 2
    Ø6 Ø8 C-KQ2N06-08 42 18.5 17 4 2
    Ø8 Ø10 C-KQ2N08-10 47 21 18.5 6 13.2
    Ø10 Ø12 C-KQ2N10-12 51 22 21 8 18.2

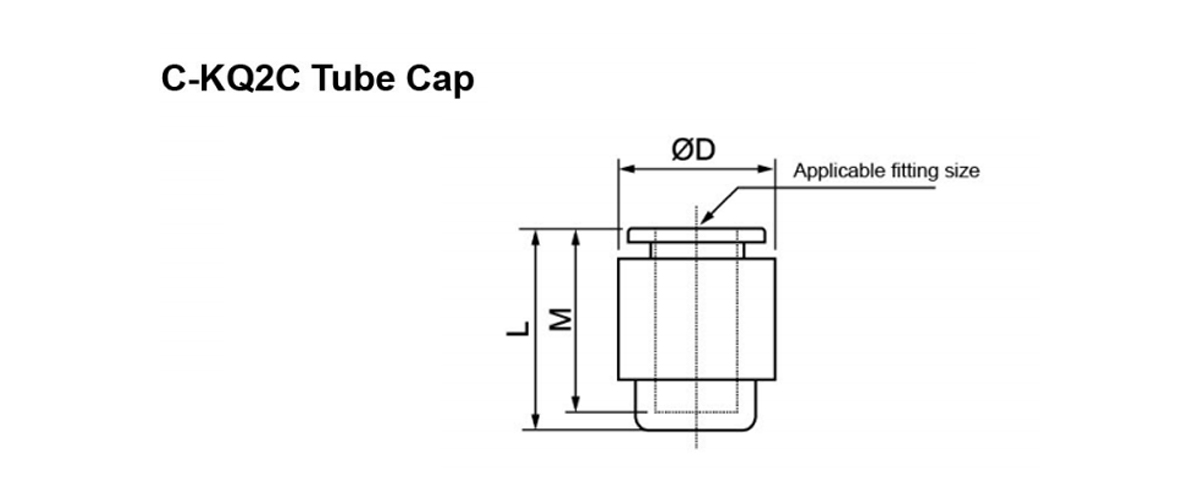

    Applicable Tubing
    (mm)     		Model ØD L M
    Weight
    (g)
    Ø4 C-KQ2C04-00 10.4 17 16 3
    Ø6 C-KQ2C06-00 12.8 18.5 17 3
    Ø8 C-KQ2C08-00 15.2 20.5 18.5 4
    Ø10 C-KQ2C10-00 18.5 23 21 6
    Ø12 C-KQ2C12-00 20.9 24 22 8

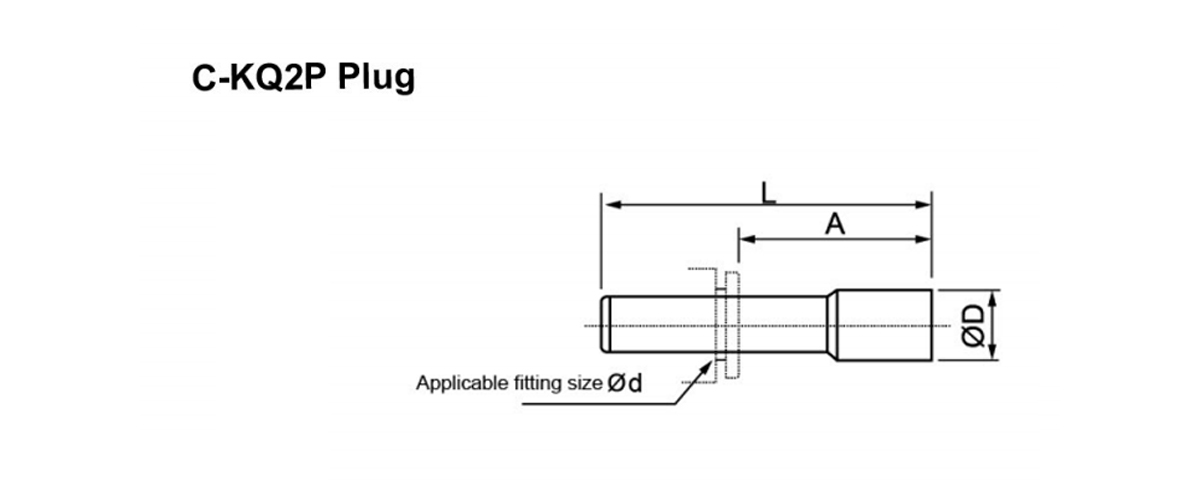

    Applicable
    Fitting Size
    ØD     		Model ØD L A Weight
    (g)
    Ø4 C-KQ2P-04 6 32 16 1
    Ø6 C-KQ2P-06 8 35 18 1
    Ø8 C-KQ2P-08 10 39 20.5 2
    Ø10 C-KQ2P-10 12 43 22 3.5
    Ø12 C-KQ2P-12 14 45.5 24 5

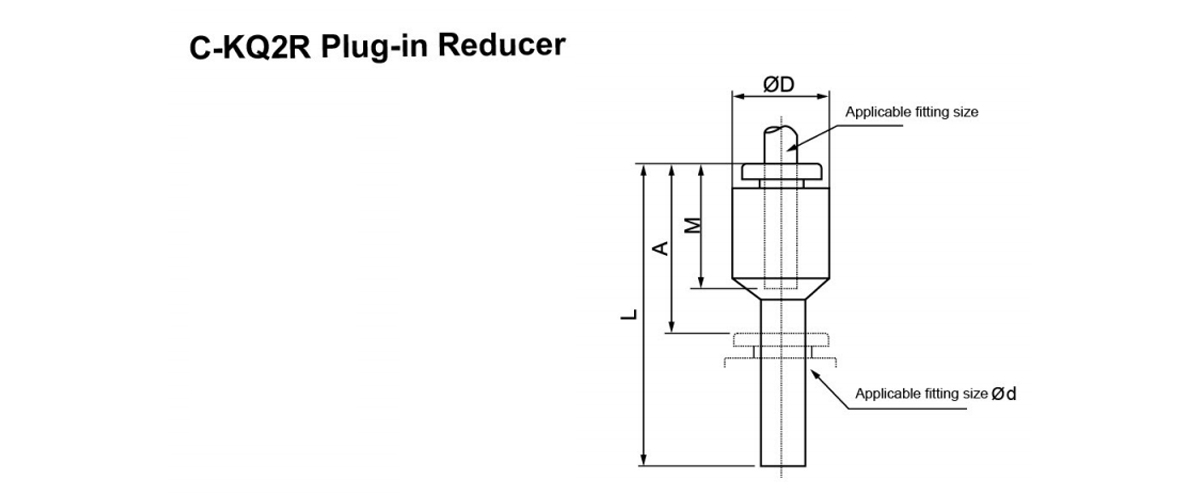

    Applicable
    Tubing
    (mm)     		Applicable
    Fitting Size
    ØD     		Model ØD L A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 Ø6 C-KQ2R04-06 10.4 34.5 17.5 15 5.6 4 1.8
    88 C-KQ2R04-08 36.5 18 2.0
    Ø10 C-KQ2R04-10 12.8 39.5 18.5 3.3
    Ø6 Ø4 C-KQ2R06-04 12.8 37 21 17 4 4 2.5
    88 C-KQ2R06-08 12.8 37 18.5 13.1 10.4 2.5
    Ø10 C-KQ2R06-10 39.5 18.5 3
    Ø12 C-KQ2R06-12 15.2 42 20 4.7
    Ø8 Ø10 C-KQ2R08-10 15.2 41 20 18.5 26.1 18.0 4.0
    Ø12 C-KQ2R08-12 42 4.6
    Ø10 Ø12 C-KQ2R10-12 18.5 44.5 23 21 41.5 32.8 33

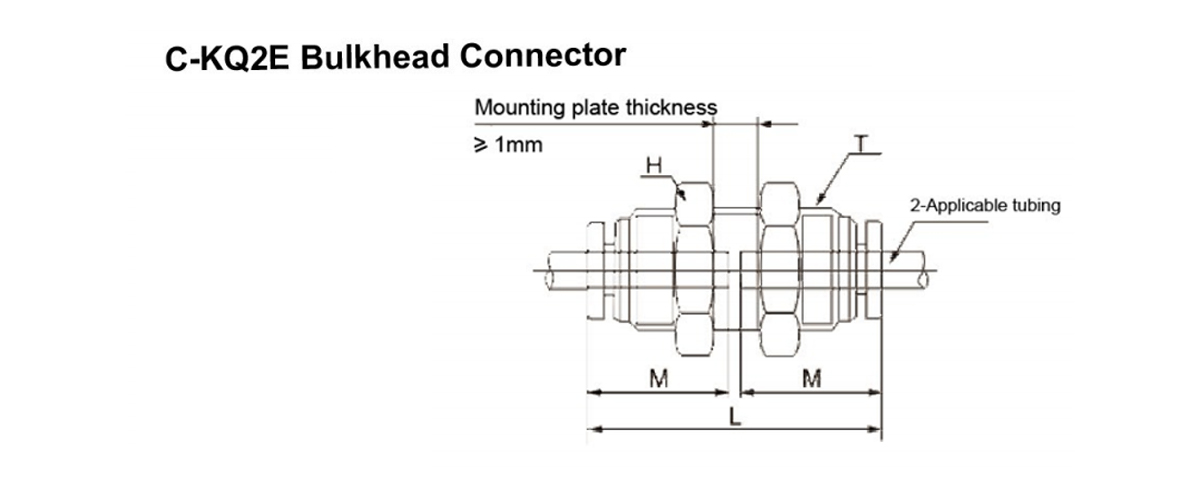

    Applicable
    Tubing
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		L
    Mount
    -ing
    Hole     		M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    φ4 C-KQ2E04-00 M12×1 14 32.5 13 16 5.6 4 26
    Φ6 C-KQ2E06-00 M¹4×1 17 34.5 15 17 13.1 10.4 33
    φ8 C-KQ2E08-00 M16×1 19 38 17 18.5 26.1 18.0 52
    φ10 C-KQ2E10-00 M20×1 24 42.5 21 21 41.5 29.5 70
    φ12 C-KQ2E12-00 M22×1 27 44 23 22 58.3 46.1 90
    Φ16 C-KQ2E16-00 M28×1.5 32 51 29 28 113 (96) 115

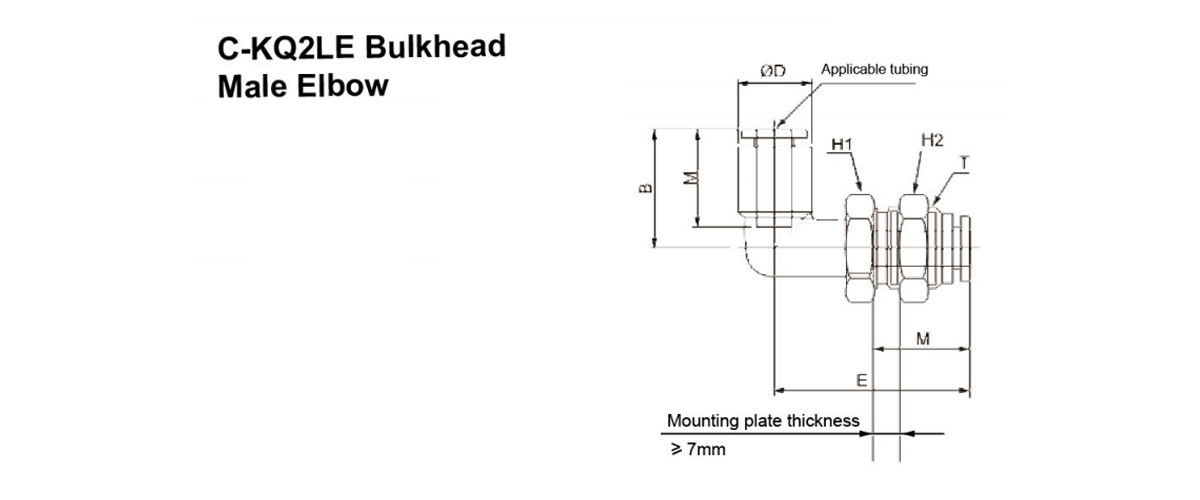

    Applicable
    Tubing
    (mm)     		Model Connection Thread T
    H1
    Width
    Across
    Flats
    H2
    Width
    Across
    Flats     		B E ØD
    Mount
    -ing
    Hole     		M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2LE04-00 M12×1 14 14 18.5 31 10.4 13 16 4.2 4.2 18
    Ø6 C-KQ2LE06-00 M14×1 17 17 20.5 34 12.8 15 17 11.4 9.0 25
    Ø8 C-KQ2LE08-00 M16×1 17 19 23.5 38.5 15.2 17 18.5 21.6 14.9 33
    Ø10 C-KQ2LE10-00 M20×1 22 24 26.5 43.5 18.5 21 21 35.2 25.0 63
    Ø12 C-KQ2LE12-00 M22×1 24 27 28.5 45.5 20.9 23 22 50.2 39.7 77

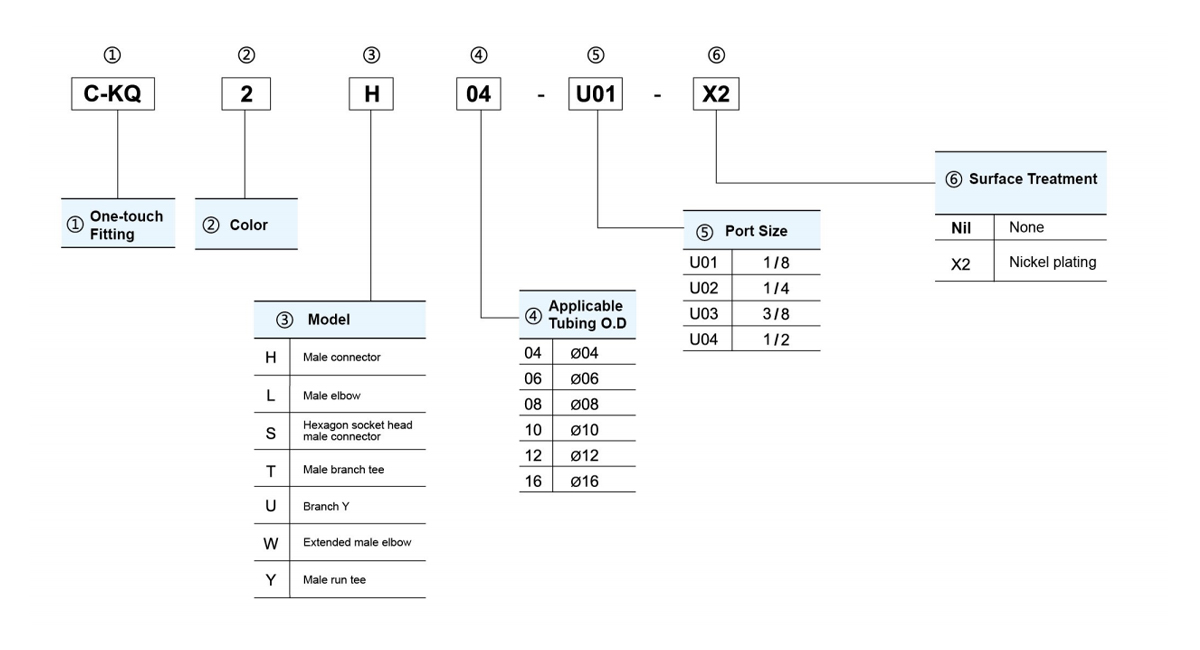

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		L A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2H04-U01 18 10 18.5 13.5 16 5.6 5.6 5
    C-KQ2H04-U02 14 14 16.5 10.5 10
    Ø6 C-KQ2H06-U01 1/8 1214 19.5 14.5 17 13.1 13.1 5
    C-KQ2H06-U02 14 13 10
    C-KQ2H06-U03 38 17 17.5 11.5 16
    Ø8 C-KQ2H08-U01 18 14 25 20.5 18.5 26.1 18.0 11
    C-KQ2H08-U02 14 21.5 15.5 27
    C-KQ2H08-U03 3/8 17 19.5 13.5 33
    Ø10 C-KQ2H10-U01 1/8 17 28 23 21 41.5 29.5 17
    C-KQ2H10-U02 14 22 17
    C-KQ2H10-U03 3/8 24 18 14
    C-KQ2H10-U04 12 22 22 14 28
    Ø12 C-KQ2H12-U02 14 19 30.5 24.5 22 58.3 46.1 22
    C-KQ2H12-U03 3/8 25.5 19.5 16
    C-KQ2H12-U04 12 22 24.5 16.5 28
    Ø16 C-KQ2H16-U03 3/8 24 33.5 27.5 24 81 (81) 39
    C-KQ2H16-U04 1/6
    72     		28.5 20.5 113 (96) 25


    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    ( g)
    Nylon Urethane
    Ø4 C-KQ2L04-U01 18 10 10.4 10 18 20 20.5 16 4.2 4.2 8
    C-KQ2L04-U02 1/4 14 22 21.5 14
    Ø6 C-KQ2L06-U01 1/8 10 12.8 10 20 21.5 23.5 17 11.4 11.4 9
    C-KQ2L06-U02 14 14 23 15
    C-KQ2L06-U03 3/8 17 24 24.5 23
    Ø8 C-KQ2L08-U01 18 12 15.2 12 23 22.5 25.5 18.5 21.6 14.9 11
    C-KQ2L08-U02 14 14 24.5 26 16
    C-KQ2L08-U03 3/8 17 25.5 27 24
    Ø10 C-KQ2L10-U01 1/8 17 18.5 17 26.5 25 29.5 21 21.6 14.9 24
    C-KQ2L10-U02 14 26.5 30 35.2 25.0 21
    C-KQ2L10-U03 3/8 27 30.5 25
    C-KQ2L10-U04 12 22 30 31.5 45
    Ø12 C-KQ2L12-U02 14 17 20.9 17 28.5 27 31.5 22 50.2 39.7 23
    C-KQ2L12-U03 3/8 28 32.5 27
    C-KQ2L12-U04 12 22 31 33.5 48
    Ø16 C-KQ2L16-U03 3/8 22 26.5 21 33 40.5 33 24 71 (71) 49
    C-KQ2L16-U04 35 100 (84) 50

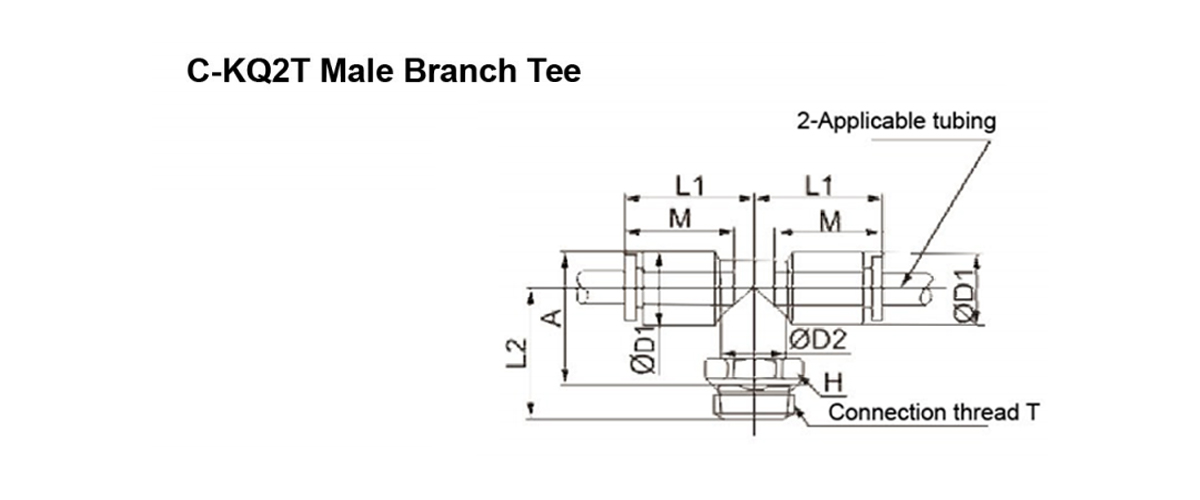

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M Effective Area
    ( mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2T04-U01 18 10 10.4 10 18 20 21.5 16 6.0 6.0 9
    C-KQ2T04-U02 14 14 22 15
    Ø6 C-KQ2T06-U01 1/8 10 12.8 10 20 21.5 23.5 17 13.9 13.9 11
    C-KQ2T06-U02 14 14 23 17
    C-KQ2T06-U03 3/8 17 24 24.5 26
    Ø8 C-KQ2T08-U01 18 12 15.2 12 23 22.5 26 18.5 26.3 18.2 15
    C-KQ2T08-U02 14 14 24.5 20
    C-KQ2T08-U03 3/8 17 25.5 27 28
    Ø10 C-KQ2T10-U01 18 17 18.5 17 26.5 25 29.5 21 40.8 29.0 30
    C-KQ2T10-U02 1/4 26.5 30 27
    C-KQ2T10-U03 3/8 27 30.5 31
    C-KQ2T10-U04 12 22 30 31.5 51
    Ø12 C-KQ2T12-U02 14 17 20.9 17 28.5 27 31.5 22 57.2 45.2 31
    C-KQ2T12-U03 3/8 28 32.5 34
    C-KQ2T12-U04 1/2 22 31 33.5 54
    Ø16 C-KQ2T16-U03 22 26.5 21 33 40.5 33 24 71 (71) 62
    C-KQ2T16-U04 35 100 (100) 63

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 L P A M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2U04-U01 18 11 10.4 40 10.4 36 16 4.2 4.2 11
    C-KQ2U04-U02 1/4 14 42 16
    Ø6 C-KQ2U06-U01 1/8 13 12.8 43.5 12.8 39.5 17 13.4 13.4 14
    C-KQ2U06-U02 1/4 14 45 39 18
    C-KQ2U06-U03 3/8 17 46 40 26
    Ø8 C-KQ2U08-U01 18 17 15.2 50.5 15.2 46.5 18.5 25.6 17.7 27
    C-KQ2U08-U02 14 52 46 25
    C-KQ2U08-U03 3/8 51.5 45.5 28
    Ø10 C-KQ2U10-U02 1/4 19 18.5 57.5 18.5 51.5 21 40 28.4 38
    C-KQ2U10-U03 3/8 36
    C-KQ2U10-U04 1/2 22 59 51 51
    Ø12 C-KQ2U12-U02 14 22 20.9 61 20.9 55 22 57.4 45.4 53
    C-KQ2U12-U03 3/8 52
    C-KQ2U12-U04 62.5 54.5 52

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    (g )
    Nylon Urethane
    Ø4 C-KQ2W04-U01 1/8 10 10.4 10 18 34.5 35.5 16 6.4 4.0 16
    C-KQ2W04-U02 1/4 14 37 38.5 26
    Ø6 C-KQ2W06-U01 1/8 10 12.8 10 20 38.5 41 17 10.9 10.9 18
    C-KQ2W06-U02 1/4 14 40.5 29
    C-KQ2W06-U03 3/8 17 41.5 42 40
    Ø8 C-KQ2W08-U01 1/8 12 15.2 12 23 43.5 46.5 18 20.5 14.2 28
    C-KQ2W08-U02 1/4 14 45.5 47 35
    C-KQ2W08-U03 3/8 17 46 48 46
    Ø10 C-KQ2W10-U02 1/4 17 18.5


    20.9     		17


    17     		26.5


    28.5     		52.5 56 21


    22     		33.5


    47.7     		23.8



    37.7     		67
    C-KQ2W10-U03 3/8 57
    C-KQ2W10-U04 1/2 22 54.5 98
    Ø12 C-KQ2W12-U02 1/4 17 54 58.5 69
    C-KQ2W12-U03 3/8 59
    C-KQ2W12-U04 22 56 99

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2S04-U01 1/8 3 10 23.5 18.5 16 4.1 3.6 7
    Ø6 C-KQ2S06-U01 1/8 4 11.8 24 19 17 10.0 9.9 9
    C-KQ2S06-U02 1/4 13.5 18 107 10.0 12
    Ø8 C-KQ2S08-U01 18 5 14 27.5 22.5 18.5 17.2 16.2 12
    C-KQ2S08-U02 1/4 6 28 22 23.3 14
    C-KQ2S08-U03 3/8 17 27.5 21.5 24
    Ø10 C-KQ2S10-U01 1/8 5 17 30 25 21 17.2 10.0 18
    C-KQ2S10-U02 1/4 8 29 23 39.0 26.6 17
    C-KQ2S10-U03 3/8 28.5 22.5 19
    C-KQ2S10-U04 1/2 21 29 21 36
    Ø12 C-KQ2S12-U02 1/4 8 19 30.5 25 22 46.0 44.5 20
    C-KQ2S12-U03 3/8 9 31 60.0 22
    C-KQ2S¹2-U04 1/2 21 28.5 20.5 30

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2V04-U01 18 8 10.4 13.4 22 13.5 25.5 20.5 16 2.9 2.9 12
    Ø6 C-KQ2V06-U01 1/8 8 12.8 13.4 24 13.5 25.5 20.5 17 7.5 7.5 13
    C-KQ2V06-U02 1/4 10 15.4 23.5 15.5 28 22 21
    Ø8 C-KQ2V08-U01 18 12 15.2 17.6 28.5 14.5 27.5 22.5 18.5 11.2 2430 2225
    C-KQ2V08-U02 14 16.5 29.5 23.5
    C-KQ2V08-U03 3/8 14 20.6 27.5 18.5 34 28 14.3 47 36
    Ø10 C-KQ2V10-U02 1/4 14 18.5 20.6 31 18.5 34 28 21 27 20.3 35
    C-KQ2V10-U03 3/8 38
    Ø12 C-KQ2V12-U03 3/8 17 20.9 25.2 34 20 26.5 30.5 22 39 30.8 52
    C-KQ2V12-U04 1/12 22.5 39.5 31.5 62

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		D Q L1 L2 A M Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2Y 04-U01 18 11 10.5 4.6 18.1 20.1 34.1 16.1 6.4 6.4 13
    C-KQ2Y 04-U02 1/4 14 22.1 34.1 19
    Ø6 C-KQ2Y 06-U01 1/8 13 12.9 5.4 20.1 21.1 37.1 17.1 13.4 13.4 12
    C-KQ2Y 06-U02 14 14 23.1 37.1 20
    C-KQ2Y 06-U03 3/8 17 24.1 38.1 34
    Ø8 C-KQ2Y 08-U01 1/8 17 15.3 6.1 23.1 22.6 41.6 18.6 25.6 17.7 14
    C-KQ2Y 08-U02 14 24.6 42.1 22
    C-KQ2Y 08-U03 3/8 25.6 43.6 36
    Ø10 C-KQ2Y 10-U02 1/4 19 18.6 6.9 26.6 26.1 47.2 21 40 28.4 29
    C-KQ2Y 10-U03 3/8 27.1 48.1 39
    C-KQ2Y 10-U04 1/2 30.1 48.6 66
    Ø12 C-KQ2Y 12-U02 1/4 22 21 7.6 28.6 27.1 50.1 22.1 57.4 45.4 31
    C-KQ2Y 12-U03 3/8 28.1 51.2 41
    C-KQ2Y 12-U04 1/2 31.1 51.6 68

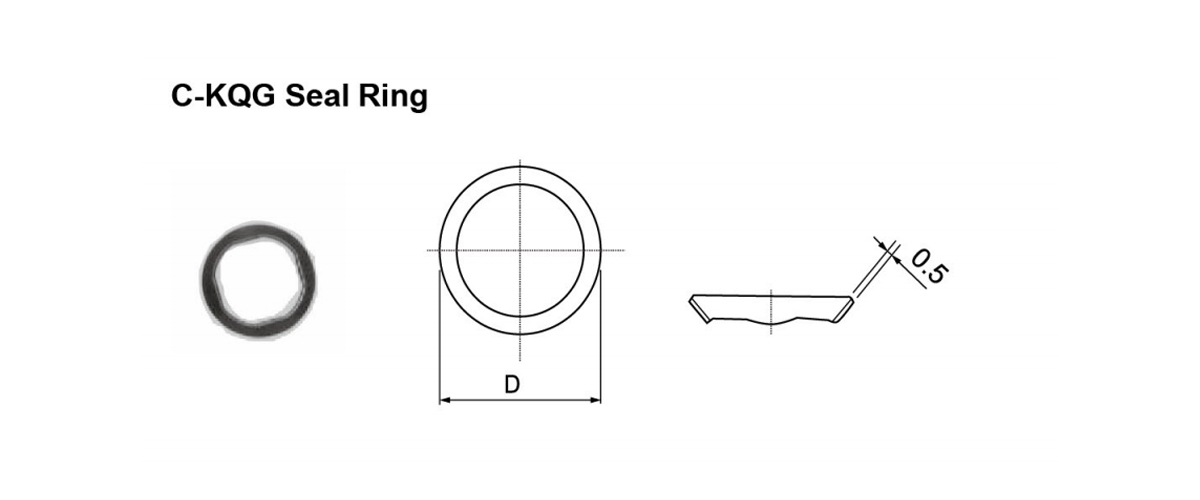

    Applicable Tubing O.D
    (mm)     		Connection Thread T ØD Weight
    (g)
    C-KQG-U01 18 11.8 0.12
    C-KQG-U02 14 15.3 0.19
    C-KQG-U03 3/8 18.7 0.23
    C-KQG-U04 12 23.4 0.34

Produits associés

Blog et actualités

Nos dernières actualités et
Blog

Voir plus

Une qualité authentique et fiable se distingue naturellement.

Le choix vient de la confiance, et la coopération de l'honnêteté.

  • Q : Dans combien de temps pouvons-nous obtenir une réponse après vous avoir envoyé une demande ?

    Nous vous répondrons dans les 24 heures suivant la réception de la demande en jours ouvrables.

  • Q : Êtes-vous un fabricant direct ou une société commerciale ?

    Nous sommes un fabricant et nous disposons de notre propre service commercial international. Nous pouvons donc produire et vendre nous-mêmes.

  • Q : Pouvez-vous fabriquer des produits personnalisés ?

    Oui, nous pouvons développer et fabriquer des produits selon les dessins ou les échantillons fournis par les clients.

  • Q : Comment votre entreprise garantit-elle la qualité des produits ?

    Tout d'abord, nous effectuerons l'inspection après chaque processus. Pour les produits finis, nous effectuerons une inspection à 100 % selon les exigences des clients et la norme internationale.

  • Q : Où vos produits sont-ils principalement exportés ?

    Nos produits sont principalement exportés vers l'Allemagne, les États-Unis, le Danemark et plus d'une douzaine de pays en Europe et en Amérique du Nord
